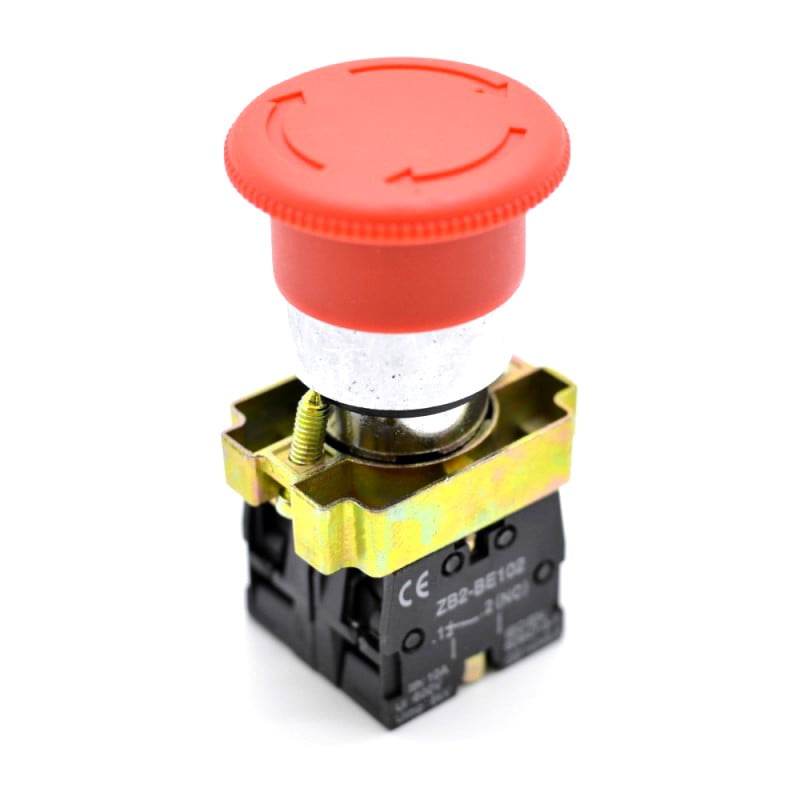

220V Mushroom Push Button Latching ON-OFF, Red
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |
Latching Emergency Stop Button for Electric Motors
The mushroom-head motor button with ON-OFF function provides simple and safe control of motors, contactors, and relays in industrial or domestic installations. Operated by pressing with automatic latching, it is ideal for emergency stops or ON-OFF control of 220V electrical equipment. Constructed from flame-retardant and durable materials, it guarantees long-term reliability under intensive use conditions.
What you get with this product
- Quick emergency stop via a visible, 40mm mushroom button, easy to identify and operate even under stress conditions
- Latching mechanism with automatic lock — stays in the chosen position without manual holding, perfect for continuous equipment control
- Quick installation in control panels through a 22mm hole, without special tools or advanced electrical knowledge
- Silver alloy contacts for maximum conductivity and minimal wear, even with frequent connection-disconnection
- Certified flame-retardant construction, increased safety in high-risk industrial or residential environments
- Compatible with standard 220V AC electromagnetic starters, contactors, and relays, integrating immediately into existing installations
How it works and how to install it
The button works by a simple press: the first press activates the circuit and locks the button in the ON position, the second press stops the circuit and unlocks the button. Installation is done by inserting the body into the 22mm hole in the control panel, then securing it with the included tightening nut. Connection is made via the 1NO and 1NC terminals on the rear side, according to the electrical diagram of the controlled equipment. The entire operation takes a maximum of 10 minutes and a screwdriver.
Frequently Asked Questions
Can I use the button for emergency stopping of a three-phase electric motor?
Yes, the button controls the contactor that powers the three-phase motor, not the motor directly. It connects to the 220V control circuit of the contactor.
What do 1NO and 1NC mean for the contact type?
1NO is a normally open contact that closes when pressed, 1NC is a normally closed contact that opens when pressed. The button provides both contacts simultaneously, allowing for flexible configurations.
Does the button stay locked in position or does it need to be held down?
It automatically stays locked in the chosen position by a latching mechanism — it does not require manual holding. To return, press again to unlock.
Technical Specifications
| Rated Voltage | 220V AC |
| Maximum Amperage | 2A |
| Contact Type | 1NO (normally open) + 1NC (normally closed) |
| Action | Latching (ON-OFF) |
| Mushroom Button Diameter | 40mm |
| Mounting Hole Diameter | 22mm |
| Contact Material | Silver alloy |
| Body Material | Flame-retardant ABS |
| Colour | Red |
| Certification | CE |
Warranty and Support
The product benefits from a 24-month warranty according to Romanian legislation for manufacturing defects. You have the right to return within 30 days of delivery if the product does not meet expectations. Delivery is made by express courier throughout Romania, with order processing within a maximum of 24 working hours.
