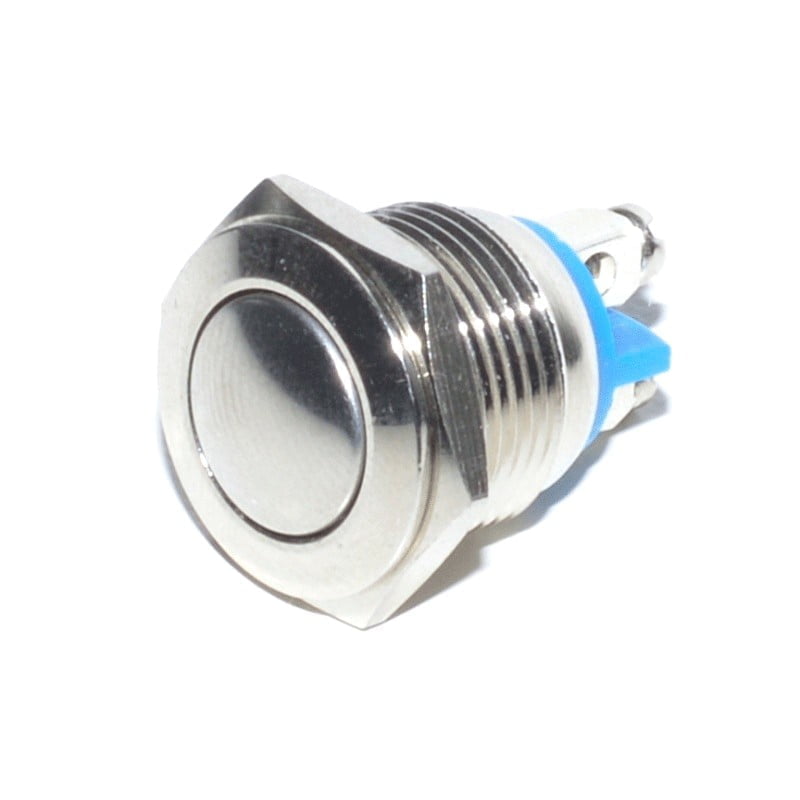

Simple Metal Push Button, Momentary, 16mm, 220V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 11,99 lei | — |
| 3–4 pcs | 11,39 lei | 5% (−0,60 lei/unit) |
| 5–10 pcs | 10,79 lei | 10% (−1,20 lei/unit) |
| 11+ pcs | 10,19 lei | 15% (−1,80 lei/unit) |
16mm momentary metal push button for industrial applications
The 16mm momentary metal push button is a robust solution for manual control in electrical panels, industrial equipment, and automation systems. Constructed entirely from chrome-plated metal, it withstands repeated mechanical stress and provides a secure 220V contact. Suitable for any installation where momentary, non-locking activation is required.
What you get with this product
- Momentary, non-latching contact — the circuit closes only while pressed, ideal for impulse start commands
- Durable chrome-plated metal body — stainless steel surface withstands intensive use without deformation or corrosion
- Simple 16mm hole mounting — quickly secured with the included mounting nut, no special tools required
- Screw connection — wiring is secure and does not require additional terminals
- Compatible with 220V network — directly usable in standard single-phase circuits without additional components
- Compact dimensions — total height of 25mm allows integration into panels with limited space
How it works and how to install it
The button operates with a normally open (NO) contact: when pressed, the circuit momentarily closes, and upon release, it automatically returns to its initial position. Installation involves drilling a 16mm hole in the desired panel or housing, inserting the button, securing it with the mounting nut, and connecting the 2 wires via the contact screws. The entire operation takes a few minutes and does not require advanced electrical knowledge, but connection to 220V must be performed by a qualified person.
Frequently asked questions
Does the button stay pressed after I push it, or does it return on its own?
It returns automatically to its initial position — it is a momentary, non-latching type, the circuit is active only while pressed.
What diameter hole do I need for mounting?
A precise 16mm hole is required; the button is then secured with the included mounting nut.
Does it have a built-in LED for illumination?
No, this model does not have an LED. It is a simple metal button, without illumination.
Technical specifications
| SKU | Q-6D031 |
| Rated voltage | 220V |
| Max current | 3A |
| Contact type | NO (Normally Open) |
| Actuation type | Momentary push, non-latching |
| Number of contacts | 2 |
| Connection method | Screw |
| Mounting diameter | 16mm |
| Overall body diameter | 18mm |
| Total height | 25mm |
| Body material | Chrome-plated metal |
| LED illumination | No |
| Fixing | Mounting nut included |
| Package contents | 1 x 16mm metal push button |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of the delivery date, with no obligation to provide a reason. Delivery is fast via courier, with dispatch confirmation.
