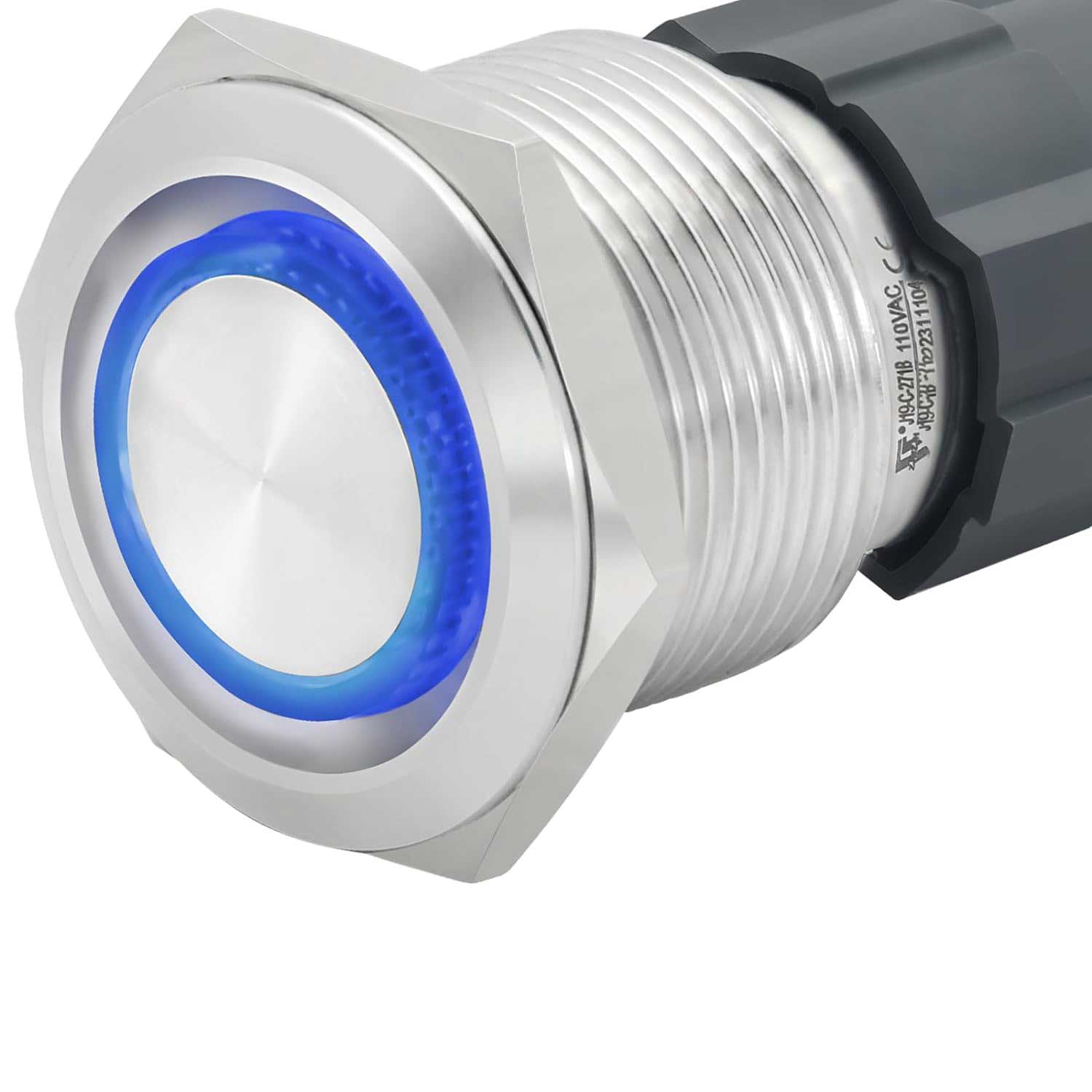

22mm Metal Push Button with RETURN, 220V-10A, Blue LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 44,99 lei | — |
| 3–4 pcs | 42,74 lei | 5% (−2,25 lei/unit) |
| 5–10 pcs | 40,49 lei | 10% (−4,50 lei/unit) |
| 11+ pcs | 38,24 lei | 15% (−6,75 lei/unit) |
22mm metal push button with blue LED for industrial control panels
The 22mm metal push button with momentary action and blue LED illumination is designed for use in demanding industrial environments, from automation panels and vending machines to self-service car washes and HORECA equipment. The 304/316 aluminum casing and IP65 protection class ensure reliable operation even in conditions of humidity or dust exposure.
What you get with this product
- IK09 certified vandalism resistance — the 304/316 aluminum metal body does not deform on impact, suitable for public or industrial spaces with unrestricted access
- IP65 sealing included — the rubber gasket and M22 threaded construction prevent water and dust ingress, without additional protection measures
- Gold-plated silver alloy contacts — superior conductivity and extended contact life, even with frequent switching
- Dual NO/NC compatibility — the 6 connection pins allow configuring the normally open or normally closed contact directly from the wiring diagram, without additional parts
- Blue illuminated ring at 220V — the integrated LED works directly at mains voltage, without an external transformer, and visually confirms the active status of the circuit
- Quick mounting via M22 thread — the detachable nut and standard 22mm size ensure compatibility with most existing industrial panels and enclosures
How it works and how to install it
The momentary push button automatically returns to its initial position after release, actuating the circuit only while pressed — standard behavior for momentary commands in automation. Installation is done by drilling a 22mm hole in the panel, inserting the button, tightening the M22 threaded nut, and connecting the 6 pins: 2 pins for powering the LED at 220V and 4 pins for the NO or NC contact, depending on the desired scheme. No special tools or advanced electrical knowledge are required, and the markings on the body clearly indicate the function of each pin.
Frequently asked questions
Does the button function as both NO and NC simultaneously?
Yes, the 4 contact pins allow the simultaneous use of both types of contact — NO and NC — from the same unit, depending on how it is wired in the scheme.
Is the blue LED powered separately or directly from the 220V of the main circuit?
The LED is powered separately through the 2 dedicated pins and operates at 220V AC, so it does not require an additional power source or external resistor.
Can it be mounted outdoors or in high humidity environments?
Yes, the IP65 rating provides complete protection against water jets and dust, making it suitable for car washes, outdoor panels, or areas with high humidity.
Technical specifications
| SKU | EAZ-BP055 |
| Mounting diameter | 22 mm |
| Thread | M22 |
| LED supply voltage | 220V AC |
| Maximum contact current | 10A |
| LED color | Blue |
| Action type | Momentary push button |
| Number of pins | 6 (2 LED + 4 contact) |
| Contact types | 1NO + 1NC |
| Body material | Aluminum 304 / 316 |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Vandal-proof class | IK09 |
| Actuation force | 500 gf |
| Brand | ElectroAZ |
Warranty and support
The product benefits from a 2-year legal warranty according to current Romanian legislation. You can return the product within 30 days of delivery if it does not meet your needs. Delivery is carried out quickly by courier, with shipping confirmation and tracking.
