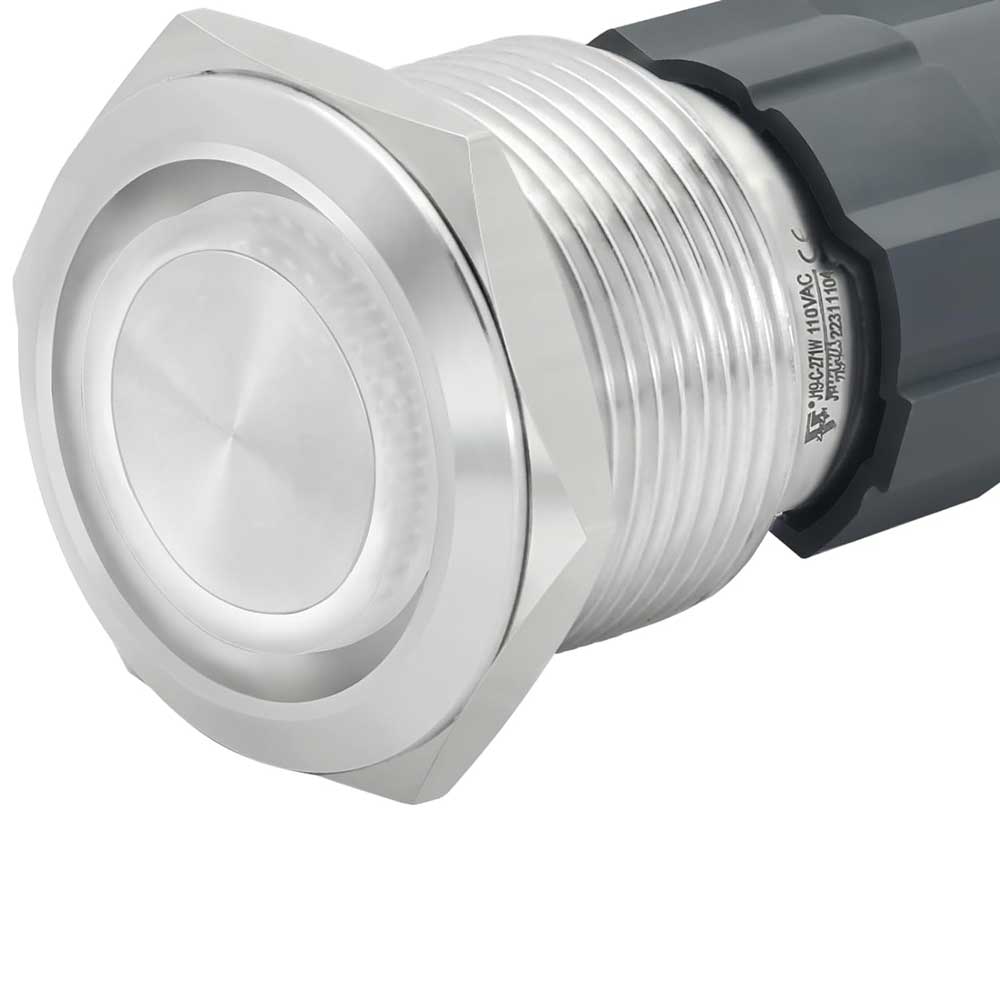

22mm Push Metal Button with RETURN, 220V-10A, White LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 44,99 lei | — |
| 3–4 pcs | 42,74 lei | 5% (−2,25 lei/unit) |
| 5–10 pcs | 40,49 lei | 10% (−4,50 lei/unit) |
| 11+ pcs | 38,24 lei | 15% (−6,75 lei/unit) |
22mm Metal Push Button with White LED for Industrial Panels
The 22mm momentary metal push button is a robust solution for industrial applications requiring safe electrical control at 220V. Constructed from 304/316 aluminum with IP65 and IK09 protection ratings, it resists moisture, dust, and vandalism. Suitable for automation panels, self-service car washes, vending machines, and professional HORECA equipment.
What you get with this product
- Guaranteed resistance in harsh environments — 304/316 aluminum housing with IP65 water protection and IK09 anti-vandalism
- Clear button status visibility — 220V white LED ring signals active circuit, useful in low light conditions
- Connection flexibility — 6 pins with simultaneous NO and NC contacts, adaptable to existing electrical diagrams without additional modifications
- Durable contacts with high conductivity — silver alloy plated with gold for stable, long-term connections
- Quick installation in existing panels — standard M22mm thread, detachable nut, and rubber gasket ring included
- 10A at 220V load — supports real power circuits, not just signaling, without risk of overheating during normal use
How it works and how to install it
The momentary push button activates the electrical circuit only while pressed, automatically returning to its original position upon release — ideal for momentary commands. Installation is done through a 22mm hole in the control panel: insert the button, tighten the nut from the back, and connect the 6 pins according to the desired scheme (2 pins for LED power, 4 pins for NO/NC contacts). No advanced electrician experience is required; the connection diagram is standard for M22 industrial buttons.
Frequently Asked Questions
Does the button maintain the pressed state or does it return automatically after actuation?
It automatically returns to the initial position immediately after release — it is a momentary button, not a latching one.
Can this button be used outdoors or in humid environments?
Yes, the IP65 protection rating allows use in environments exposed to water jets and high humidity, including sheltered outdoor areas.
How do I connect the button if I only want a normally open (NO) contact?
You only use the 2 pins dedicated to the NO contact out of the 4 contact pins, ignoring the NC pins — the diagram is marked on the button body.
Technical Specifications
| SKU | EAZ-BP054 |
| Mounting diameter | 22 mm (M22 thread) |
| Supply voltage | 220V AC |
| Maximum current | 10 A |
| LED color | White |
| Actuation type | Momentary push |
| Number of pins | 6 (2 LED + 4 contact) |
| Contact type | 1NO + 1NC |
| Housing material | Aluminum 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection rating | IP65 / IK09 |
| Actuation pressure | 500 gf |
| Button profile | Flush |
| Brand | ElectroAZ |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier throughout Romania.
