22mm Push Metal Button with LATCHING, 220V-10A, Green LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 44,99 lei | — |
| 3–4 pcs | 42,74 lei | 5% (−2,25 lei/unit) |
| 5–10 pcs | 40,49 lei | 10% (−4,50 lei/unit) |
| 11+ pcs | 38,24 lei | 15% (−6,75 lei/unit) |

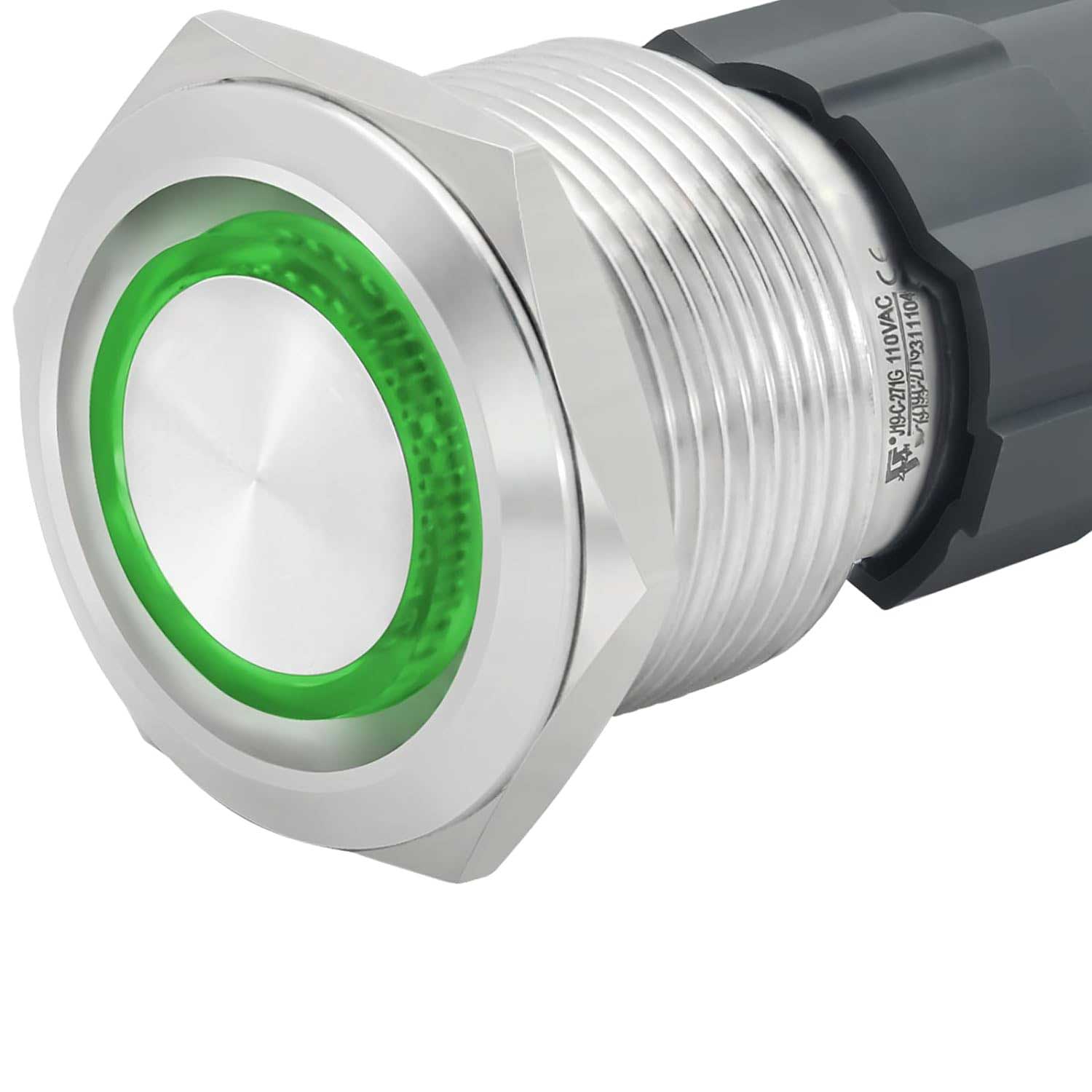

22mm Latching Metal Push Button with Green LED
The 22mm latching metal push button is the industrial solution for control panels, automation equipment, and applications requiring a robust, waterproof switch with visual confirmation via a green LED. Powered at 220V and switching at 10A, it offers long-term reliability in demanding environments, from self-service car washes to vending machines and electrical cabinets.
What you get with this product
- Immediate visual confirmation of active status — the illuminated green LED ring clearly signals if the button is activated, reducing operational errors
- Water and vandal resistance — IP65 and IK09 ratings ensure correct operation even in wet environments or those exposed to impacts
- Connection flexibility — 6 pins with NO and NC contacts allow you to adapt the button to your existing electrical diagram without additional modifications
- Superior contact durability — gold-plated silver alloy for stable conductivity and long-term oxidation resistance
- Quick and secure mounting — M22 thread, detachable nut, and rubber gasket ring; no special tools required and securely fastens into standard thickness panels
- Industrial-grade aluminum body — 304/316 material that does not rust and maintains its metallic appearance over time
How it works and how to install it
The button has a latching function, meaning it remains in the pressed position after actuation and only returns to its original position upon a second press, unlike a momentary button. Installation is done through a 22mm hole: insert the button, tighten the back nut, and connect the 6 pins according to the diagram — 2 pins for the 220V LED power supply and 4 pins for the NO/NC contacts. The entire operation can be performed by an electrician in a few minutes, without special tools.
Frequently Asked Questions
Does this button stay pressed or does it return automatically after actuation?
It is a latching button — it remains in the actuated position until pressed again, unlike momentary buttons which return immediately.
Can it be used outdoors or in wet environments?
Yes, its IP65 protection rating makes it resistant to water jets and humidity, making it suitable for car washes, outdoor installations, and exposed automation cabinets.
What diameter hole do I need in the control panel for mounting?
The mounting hole must be 22mm; the button uses an M22 thread and comes with a fixing nut included.
Technical Specifications
| SKU | EAZ-BP047 |
| Mounting Diameter | 22 mm |
| Thread | M22 |
| LED Supply Voltage | 220V AC |
| Maximum Switching Current | 10A |
| LED Color | Green |
| Button Type | Latching |
| Number of Pins | 6 pins (2 LED + 4 contact) |
| Contact Types | 1NO + 1NC |
| Body Material | Aluminum 304 / 316 |
| Contact Material | Gold-plated silver alloy |
| Protection Class | IP65 / IK09 |
| Actuation Pressure | 500 gf |
| Button Face Type | Flat, illuminated ring |
| Brand | ElectroAZ |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, no justification required. Delivery is fast via courier, with shipping confirmation and tracking included.
