Metallic Push Button 22mm with LATCHING, 220V-10A, Red LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 44,99 lei | — |
| 3–4 pcs | 42,74 lei | 5% (−2,25 lei/unit) |
| 5–10 pcs | 40,49 lei | 10% (−4,50 lei/unit) |
| 11+ pcs | 38,24 lei | 15% (−6,75 lei/unit) |

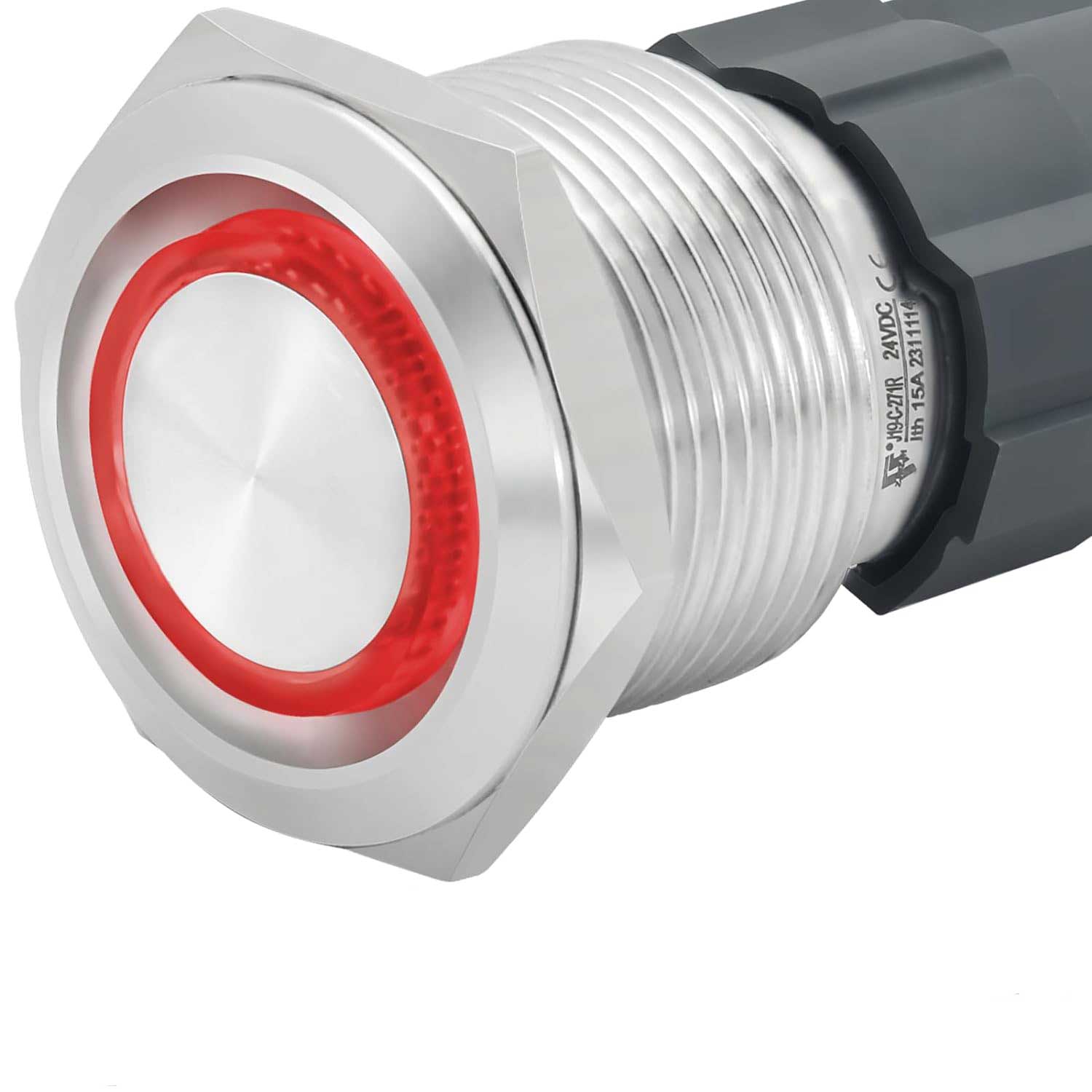

22mm Latching Metal Push Button with Red LED 220V
The 22mm latching metal push button is the robust solution for automation panels, self-service car washes, vending machines, and industrial machinery that require a reliable and durable switch. Made of 304/316 aluminum, it offers IP65 protection against moisture and IK09 anti-vandalism rating, making it suitable for both indoor and outdoor environments. The red LED illuminated ring ensures clear visibility of the activation status, even in low light conditions.
What you get with this product
- Latching operation — the button remains pressed after actuation, eliminating the need for manual holding in applications requiring a stable state
- Integrated 220V powered red LED ring — active status is immediately visible, reducing operational errors on crowded panels
- IP65 and IK09 aluminum body — resists direct water splashes and mechanical impacts without degrading the switching function
- Gold-plated silver alloy contacts — stable long-term electrical conductivity, without premature oxidation at 10A current
- NO and NC compatible — the same button covers two connection schemes, reducing the need for different spare parts
- Quick mounting via M22 thread with removable nut — installs in standard 22mm panels without special tools
How it works and how to install it
The button is mounted in any panel with a 22mm hole by screwing with the M22 thread and tightening the removable nut from the kit — the operation does not require a specialized electrician and is completed in a few minutes. Connection is made via the 6 pins: 2 pins for supplying power to the 220V LED and 4 pins for the switching contact, configurable as NO (normally open) or NC (normally closed) depending on the circuit diagram. The rubber gasket ring ensures IP65 sealing without additional interventions.
Frequently Asked Questions
What is the difference between the latching and momentary versions?
The latching version keeps the contact closed after you release the button, until a new press — useful for turning equipment on/off. The momentary version automatically returns to its initial position as soon as you release it.
Can I use this button outdoors, exposed to rain?
Yes, IP65 protection allows exposure to water jets from any direction, so it is suitable for outdoor mounting on car washes, kiosks or outdoor industrial panels.
Does the LED function separately from the switching contact?
Yes, the 6 pins are divided: 2 pins exclusively for powering the 220V LED and 4 pins for the NO/NC switching circuit, which allows independent control of lighting from the switched load.
Technical specifications
| SKU | EAZ-BP049 |
| Mounting diameter | 22 mm |
| Thread | M22 |
| LED rated voltage | 220V AC / 24V DC (as marked) |
| Contact rated current | 10A |
| Maximum thermal current (Ith) | 15A |
| Contact type | 1NO + 1NC |
| Number of connection pins | 6 pins (2 LED + 4 contact) |
| LED color | Red |
| Actuation type | Latching push (bistable) |
| Body material | Aluminum 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Mechanical resistance | IK09 |
| Actuation pressure | 500 gf |
| Brand | ElectroAZ |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, with no obligation to provide a reason. Delivery is made quickly by courier throughout Romania.
