Metal Push Button 22mm with LATCHING, 220V-10A, White LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 44,99 lei | — |
| 3–4 pcs | 42,74 lei | 5% (−2,25 lei/unit) |
| 5–10 pcs | 40,49 lei | 10% (−4,50 lei/unit) |
| 11+ pcs | 38,24 lei | 15% (−6,75 lei/unit) |

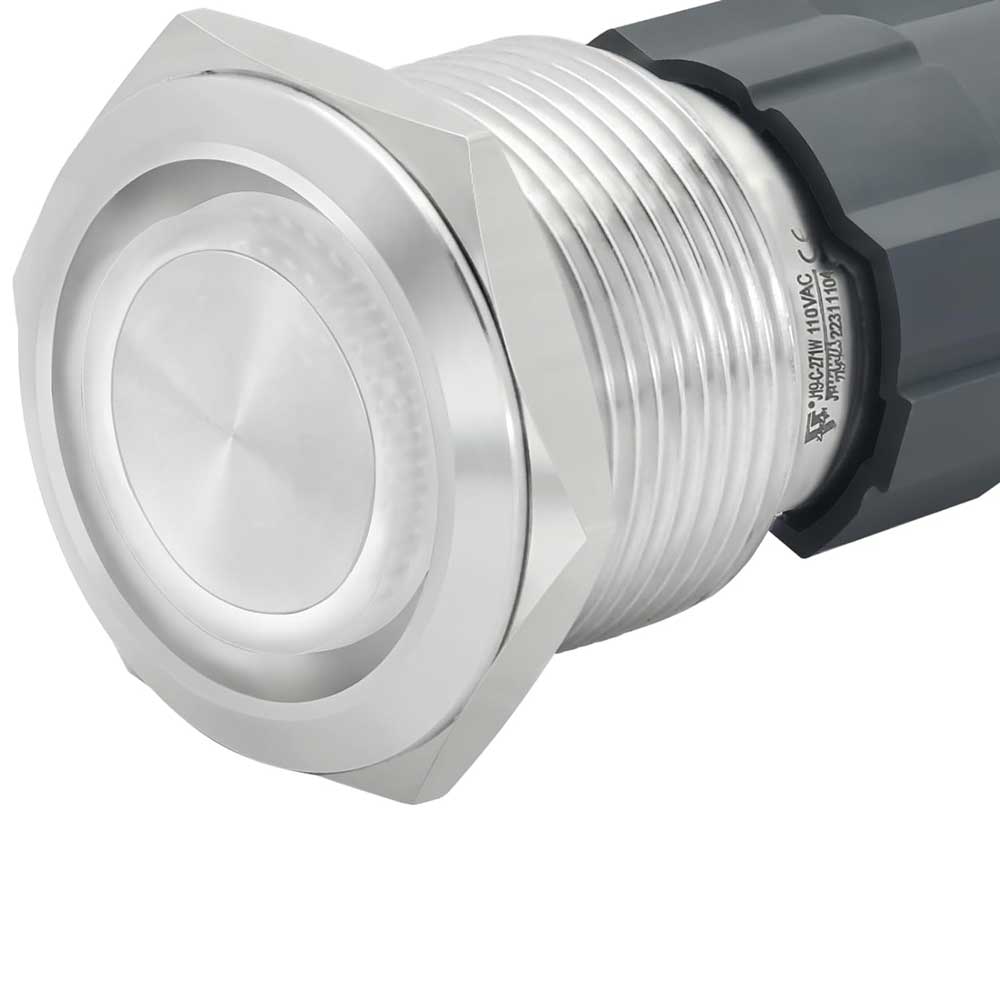

22mm Metal Latching Push Button with White 220V LED
The 22mm metal latching push button is a robust solution for industrial control panels, vending machines, self-service car washes, and HORECA equipment. Directly powered at 220V, with a white LED illuminated ring and aluminum body, it offers long-term reliability in demanding environments. Its IP65 protection class and IK09 anti-vandal resistance make it suitable for both indoor and outdoor use.
What you get with this product
- Latching function — the button stays pressed until a new action, eliminating the need for continuous manual holding
- White 220V LED ring — clear visibility of operating status, no additional transformer needed
- IP65 and IK09 aluminum body — resistant to moisture, dust, and vandalism, suitable for harsh industrial environments
- Gold-plated silver alloy contacts — superior conductivity and increased durability over time
- Compatible with NO and NC on the same button — configurable according to the electrical schematic, without additional parts
- Quick installation via M22 thread with included nut and rubber gasket — secure mounting in panels up to several centimeters thick
How it works and how to install
The button is mounted in a 22mm hole by screwing it in with the M22 thread, tightening it with the detachable nut and included sealing gasket — an operation that does not require special tools. The 6 connection pins are divided into 2 pins for 220V LED power and 4 pins for NO/NC contacts, each identifiable by its position. After wiring, the button latches its position on the first press and releases it on the next, behaving like a bistable switch.
Frequently asked questions
What is the difference between a latching button and a non-latching button?
A latching button remains locked in the pressed position until a new action, similar to a switch, while a non-latching button returns on its own after you release the pressure.
Can I use this button outdoors, exposed to rain?
Yes, the IP65 class ensures complete protection against water jets and dust, so outdoor installation is possible, provided correct mounting and sealing with the included gasket.
Can I connect only the NO contact or only the NC, without using all the pins?
Yes, you only connect the pins corresponding to the type of contact required for your schematic — the 4 contact pins are separate and independent, you use either the NO pair, the NC pair, or both simultaneously.
Technical specifications
| SKU | EAZ-BP046 |
| Mounting diameter | 22 mm (M22 thread) |
| LED supply voltage | 220V AC |
| Max contact current | 10A |
| LED color | White |
| Actuation type | Latching push (bistable) |
| Contact type | 1NO + 1NC |
| Number of connection pins | 6 pins (2 LED + 4 contact) |
| Body material | Aluminum 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 / IK09 |
| Actuation pressure | 500 gf |
| Button profile | Flat |
| Brand | ElectroAZ |
Warranty and support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. Returns accepted within 30 days of receipt, without justification, provided the original condition is maintained. Fast courier delivery throughout Romania, with dispatch confirmation via email or SMS.
