19mm Metal Push Button with RETURN, 220V-10A, Green LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

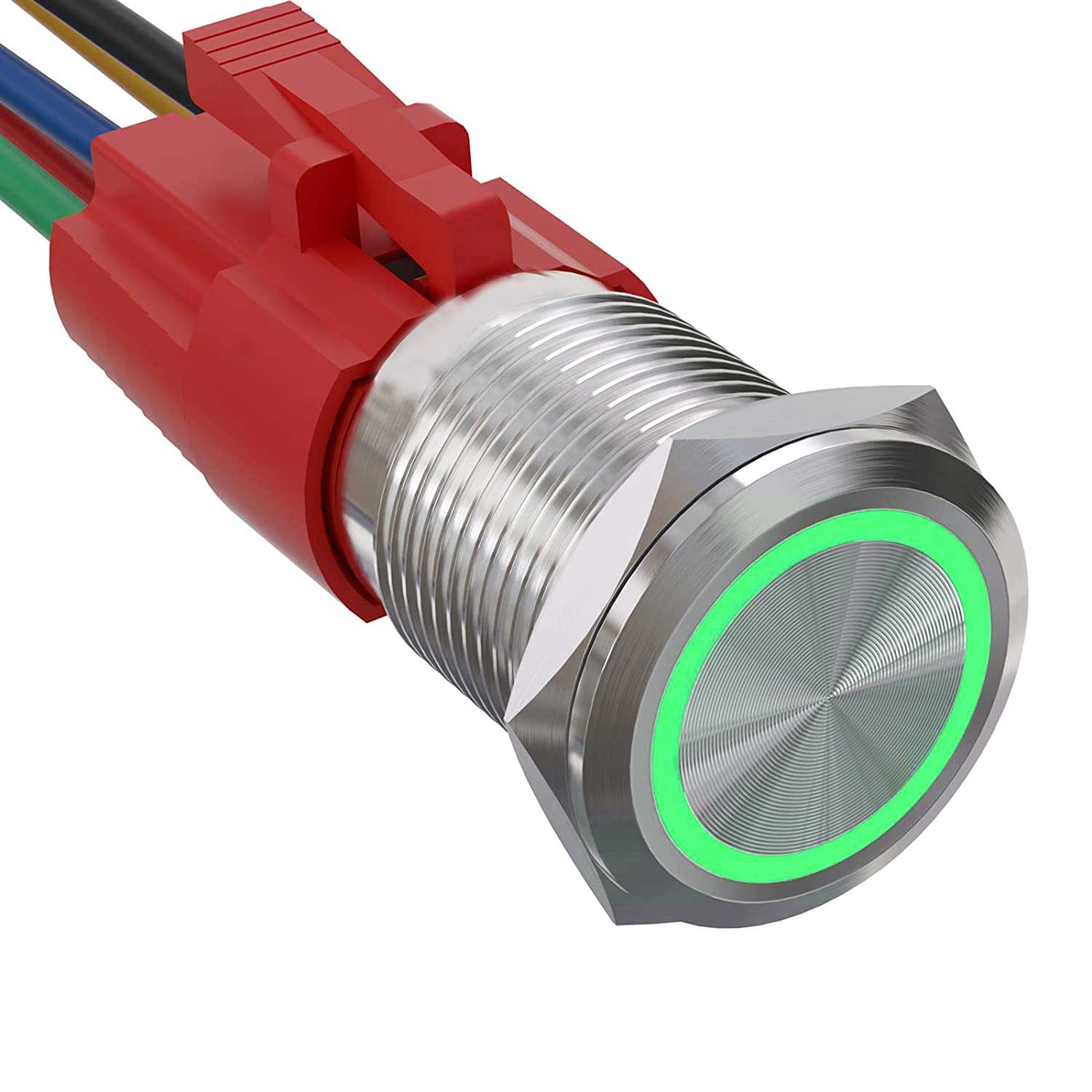

19mm Metal Push Button with Green LED and IP65 Protection
The 19mm metal push button with momentary action and green LED is the robust solution for industrial control panels, elevators, machinery, and applications where mechanical resistance and contact reliability matter. Constructed from stainless steel with an IP65 protection rating, it resists moisture and repeated physical stress. Powered at 220V and CE and RoHS certified, it is suitable for both professional use and customized technical projects.
What you get with this product

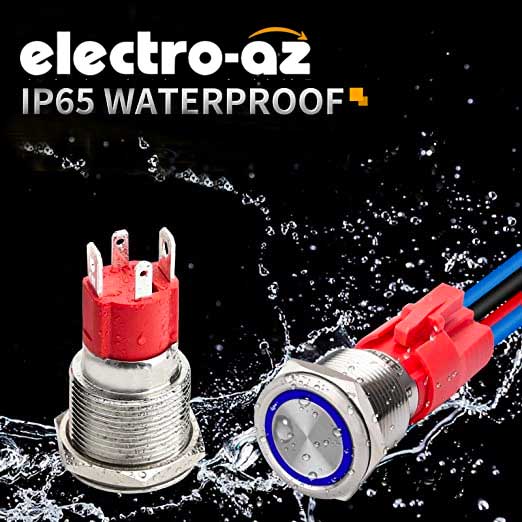

- Guaranteed water and dust resistance — IP65 rating allows installation in wet environments or those exposed to weather without additional protection
- Anti-vandal body made of 304/316 stainless steel — withstands impacts and intensive use without deformation or surface damage
- Integrated green LED visible from a distance — clearly indicates the active circuit status, useful in panels with multiple controls
- Compatible with 220V networks and loads up to 10A — covers most industrial and automation applications without additional adapters
- NO and NC contacts available on the same button — maximum connection flexibility without purchasing different components
- Quick installation with M19 thread and detachable nut — simple mounting in panels with a 19mm hole, no specialized tools required
How it works and how to install it

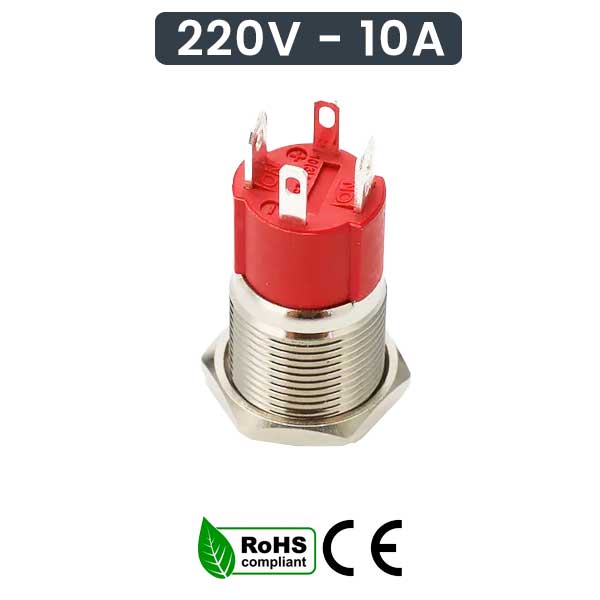

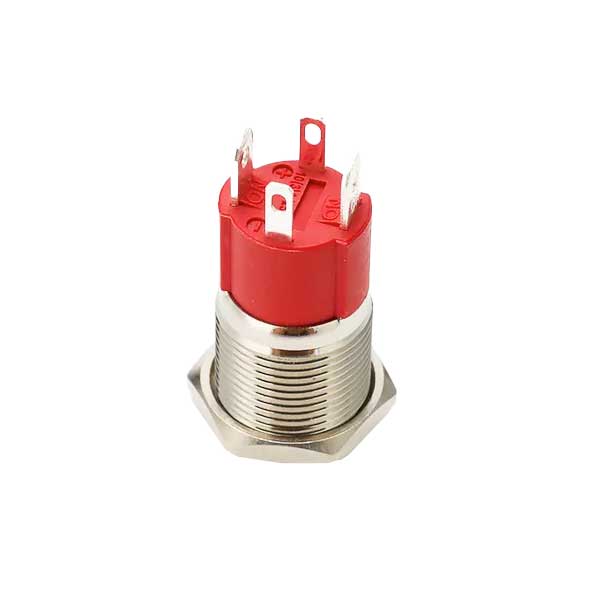

The 19mm momentary push button only actuates the circuit while pressed, automatically returning to its initial position upon release — standard behavior for momentary commands. Installation is done through a 19mm hole in the control panel, securing with the included nut, and connecting the 4 pins: 2 for the LED and 2 for the contact (NO or NC, depending on the desired schematic). The wire harness is not included in the package and can be purchased separately.
Frequently Asked Questions

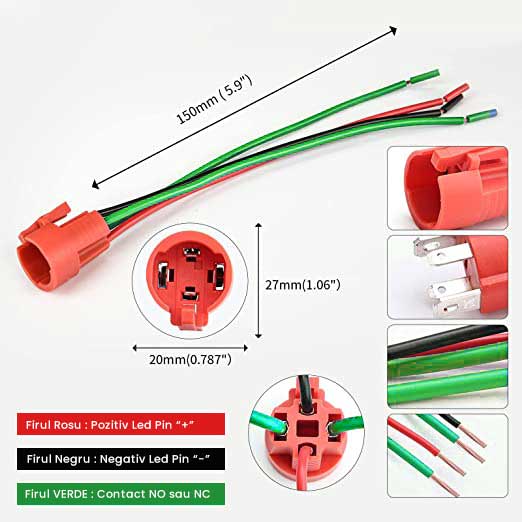

Is the wire harness included in the package?
No, the wire harness is purchased separately. The button comes with 4 exposed pins, compatible with the standard harness for 19mm push buttons.
Can I use this button at 12V or 24V instead of 220V?
The LED is rated for 220V. Using it at lower voltages may cause the LED not to light up or to be dim; for 12V or 24V applications, a model specifically designed for that voltage is recommended.
What is the difference between NO and NC contacts and which one should I use?
NO (normally open) closes the circuit only when pressed, while NC (normally closed) interrupts the circuit when pressed. The choice depends on the electrical schematic of the equipment — both variants are accessible through the 4 pins of the same button.
Technical Specifications
| Mounting diameter | 19 mm (M19 thread) |
| Rated voltage | 220V AC |
| Rated current | 10A |
| LED color | Green |
| Action type | Momentary push (return) |
| Contact type | NO / NC (4 pins) |
| Body material | 304 / 316 Stainless Steel |
| Protection class | IP65 |
| Anti-vandal class | IK09 |
| Contact material | Gold-plated silver alloy |
| Certifications | CE, RoHS |
| Wire harness | Not included (optional, separate) |
| SKU | EAZ-BP050 |
| Brand | ElectroAZ |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, with no justification required. Delivery is made by express courier, with shipping confirmation and tracking included.
