19mm Latching Metal Push Button, 220V-10A, Blue LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

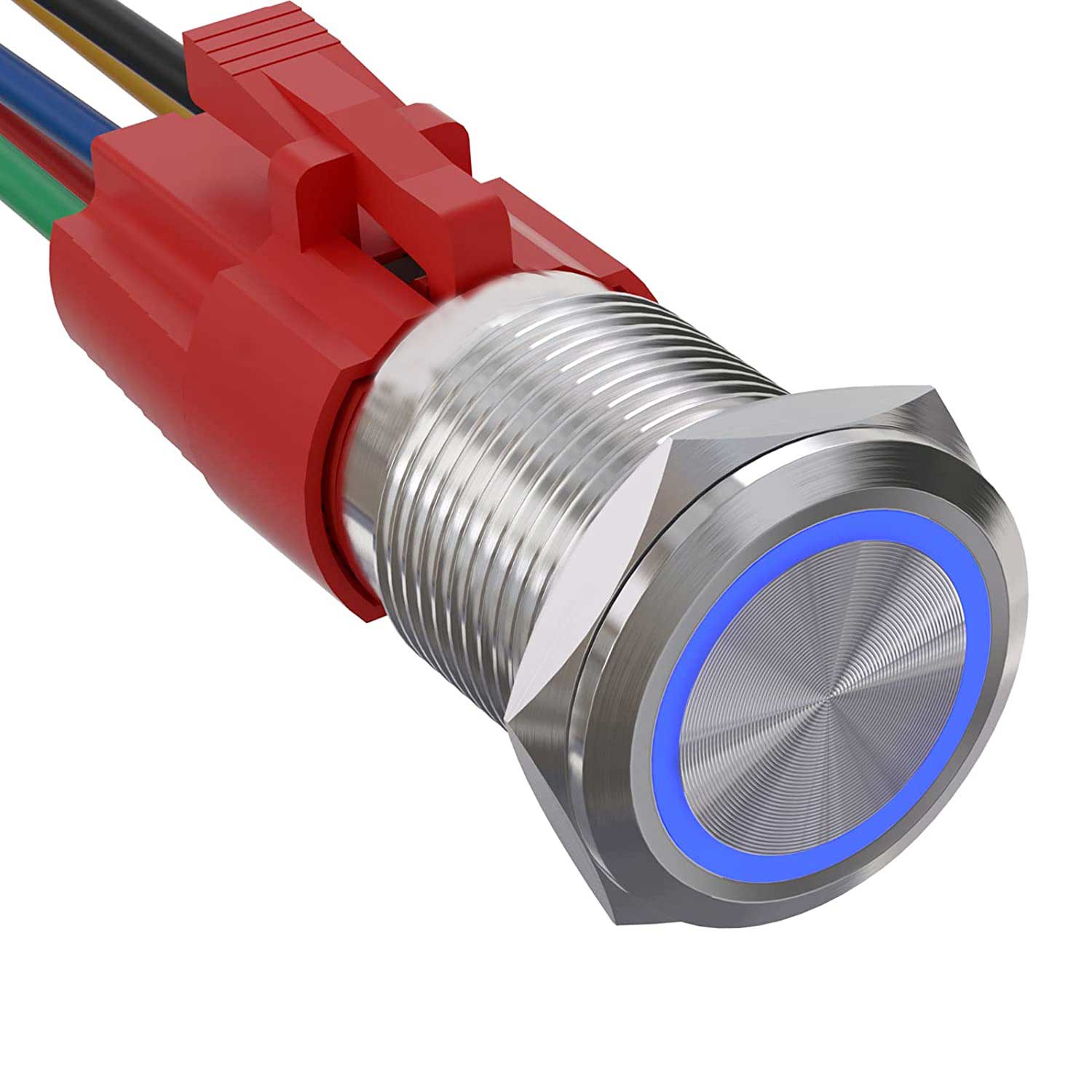

19mm Metal Push Button with Blue LED and IP65 Protection
The 19mm momentary metal push button is a robust solution for industrial control panels, elevators, machinery, and applications where mechanical resistance and impermeability are essential. Its stainless steel housing, blue illuminated ring, and IP65 protection rating make it suitable for both indoor environments and installations exposed to humidity or dust.
What you get with this product
- Guaranteed water and dust resistance with IP65 protection — suitable for electrical panels, machinery, and installations in harsh environments
- Anti-vandal 304/316 stainless steel body with IK09 impact rating — resistant to impact and intensive use
- Visible blue illuminated ring — immediately identify the active status of the button even in low light conditions
- Compatible with 220V and a 10A load — integrates directly into standard electrical circuits without additional components
- NO and NC contacts available on the same button — maximum connection flexibility depending on the automation scheme
- M19 thread and removable nut included — quick panel mounting without special tools
How it works and how to install it

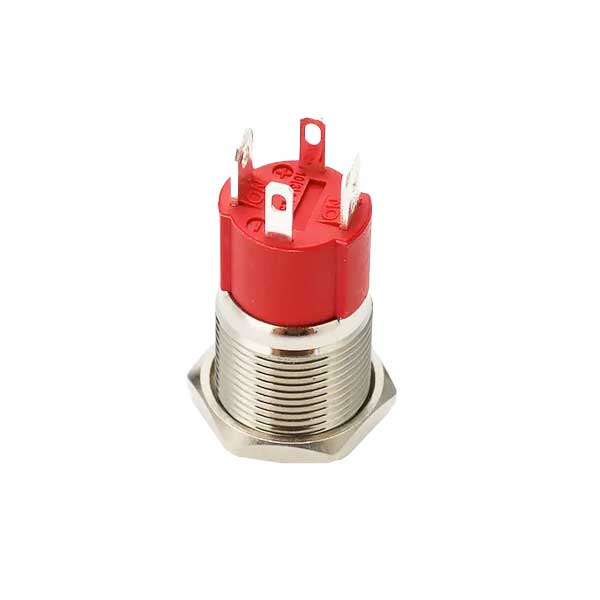

The momentary push button activates the circuit only while pressed, returning automatically to its initial position upon release. Installation is done through a 19mm panel cutout: insert the button, tighten the nut on the back, and connect the 4 pins — 2 for LED power and 2 for the control contact (NO or NC). No special tools are required, and the connection diagram is marked directly on the plastic body of the terminals.
Frequently asked questions
Is the wire connector included in the package?

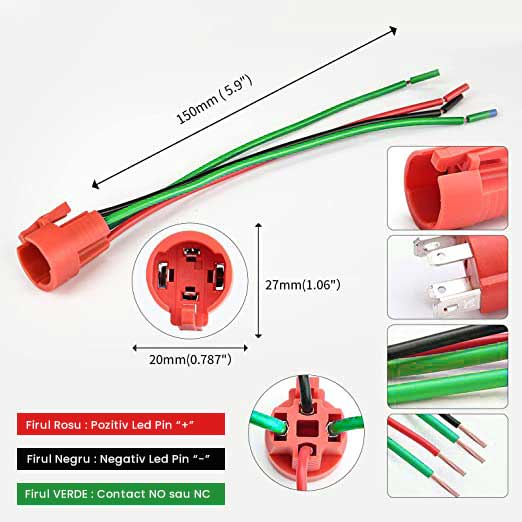

No, the wire connector is purchased separately. The package includes the button, fixing nut, and rubber gasket ring.
Can this button be used outdoors or in wet environments?

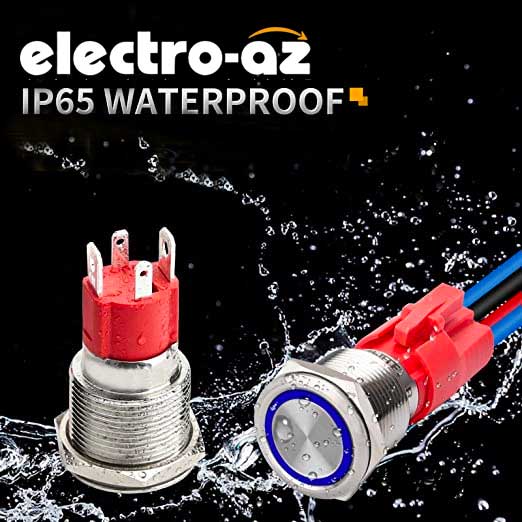

Yes, the IP65 protection ensures sealing against water jets and dust, making it suitable for semi-exposed installations or panels in high humidity areas.
What is the difference between NO and NC contacts on this button?
NO (normally open) closes the circuit only when pressed, and NC (normally closed) interrupts the circuit when pressed. Both types are available on the same button by selecting the appropriate pins for connection.
Technical specifications
| Model | EAZ-BP052 |
| Brand | ElectroAZ |
| Mounting diameter | 19 mm (M19 thread) |

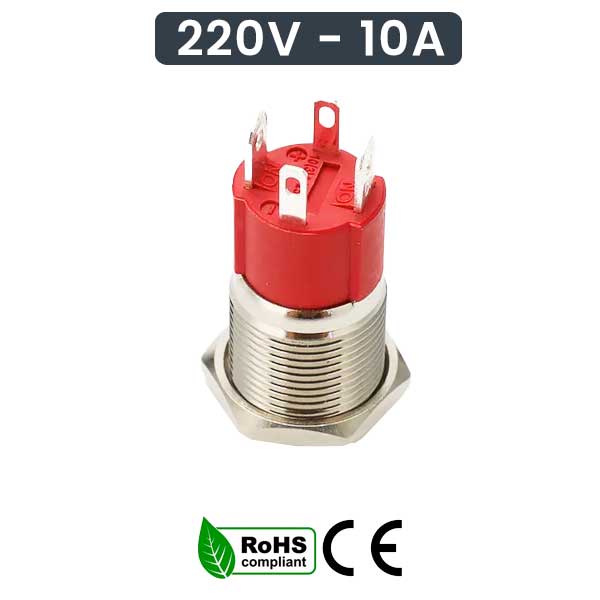

| Rated voltage | 220V AC |
| Rated current | 10A |
| Button type | Momentary push button |
| LED color | Blue |
| Lighting type | Illuminated ring |
| Number of pins | 4 (2 LED + 2 contacts) |
| Contact types | NO / NC |
| Protection class | IP65 |
| Impact class | IK09 |
| Housing material | 304/316 Stainless steel |
| Contact material | Gold-plated silver alloy |
| Certifications | CE, RoHS |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier throughout Romania.
