19mm Metal Push Button with RETURN, 220V-10A, White LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

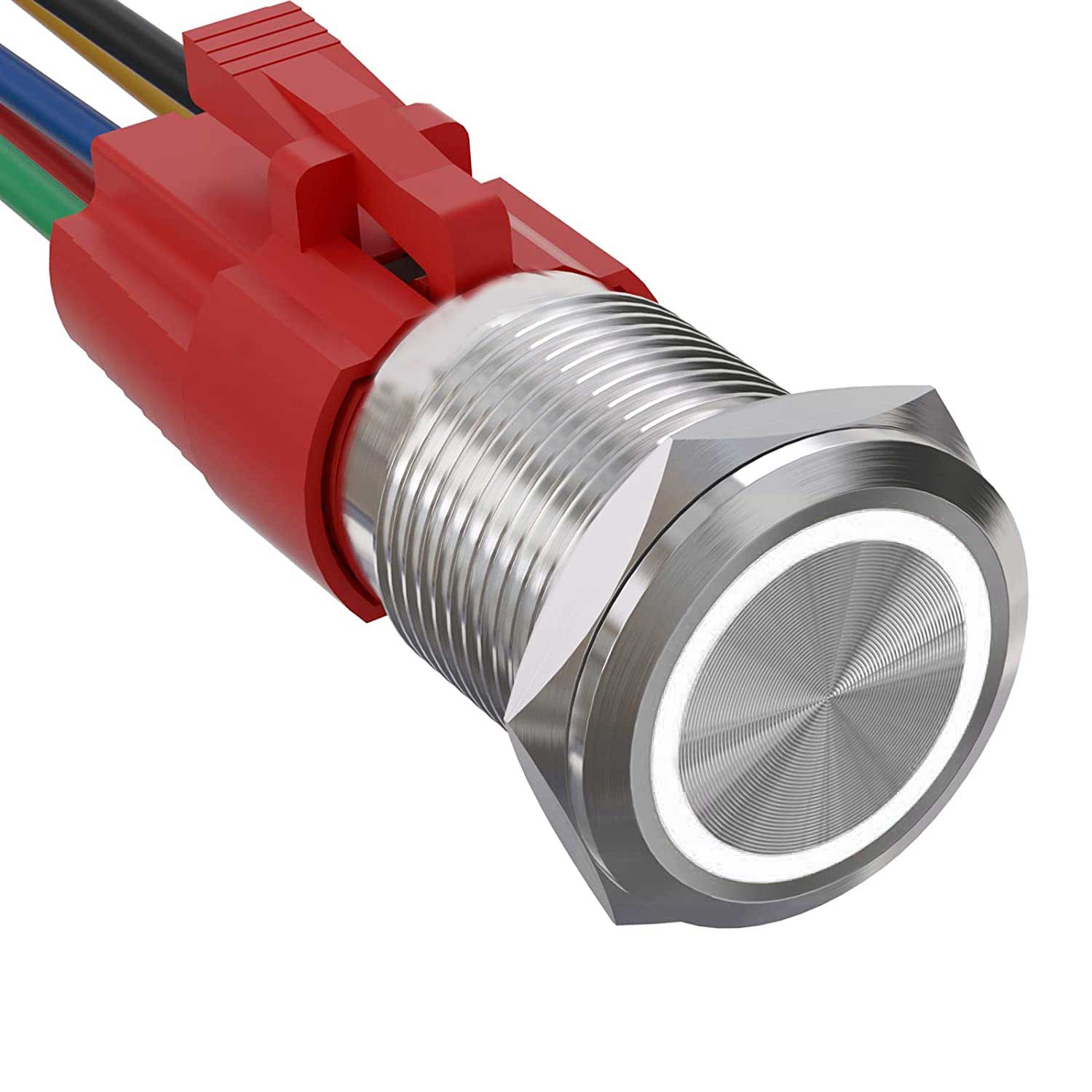

19mm Metal Push Button with White LED and IP65 Protection
The 19mm momentary metal push button is designed for industrial applications and control panels requiring high reliability and durability. With an operating voltage of 220V and a maximum current of 10A, this button integrates into control equipment, elevators, industrial machines, or electrical panels. The stainless steel body and IP65 protection class ensure safe operation even in humid environments or those exposed to splashing.
What you get with this product

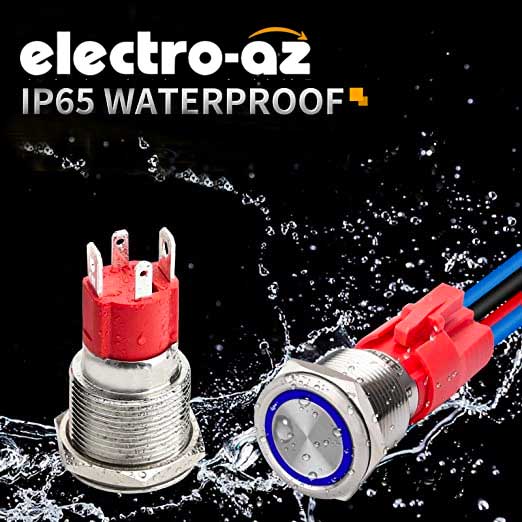

- Resistance to humidity and splashing through IP65 protection — works safely in industrial spaces, workshops, or areas exposed to the elements
- Vandal-proof stainless steel body with IK09 rating — resists mechanical impact and intensive wear in daily use
- Integrated white signaling LED — button status is immediately visible, even in low light conditions
- Compatible with NO and NC contacts — full connection flexibility depending on the existing electrical diagram
- Standard M19 thread and removable nut included — direct panel mounting without additional modifications
- CE and RoHS certified — compliant with electrical safety requirements and European regulations on hazardous substances
How it works and how to install it

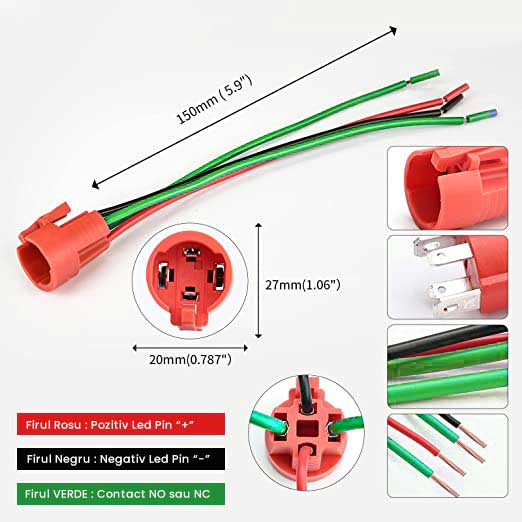

The 19mm momentary push button works by momentary press — when released, it automatically returns to its initial position, breaking or closing the circuit depending on the chosen contact type (NO or NC). Installation is done by inserting the button into a 19mm hole in the panel, securing it with the included nut, and connecting the 4 pins: 2 for LED power and 2 for the control contact. The wire connector is not included in the package and can be purchased separately.
Frequently Asked Questions
Is the wire connector included in the package?
No, the wire connector is purchased separately. The package includes the button, mounting nut, and rubber sealing ring.
Can this push button be used outdoors or in wet areas?
Yes, IP65 protection allows use in high humidity environments and those exposed to directional water jets, such as workshops, technical areas, or outdoor industrial installations.
How do I choose between NO and NC contact for connection?
The button's 2 contact pins allow connection to either NO (normally open — circuit closes when pressed) or NC (normally closed — circuit opens when pressed), depending on your equipment's electrical diagram.
Technical Specifications
| SKU | EAZ-BP051 |
| Brand | ElectroAZ |
| Mounting diameter | 19 mm (M19 thread) |
| Operating voltage | 220V AC |
| Maximum current | 10A |
| Actuation type | Momentary push |
| LED color | White |

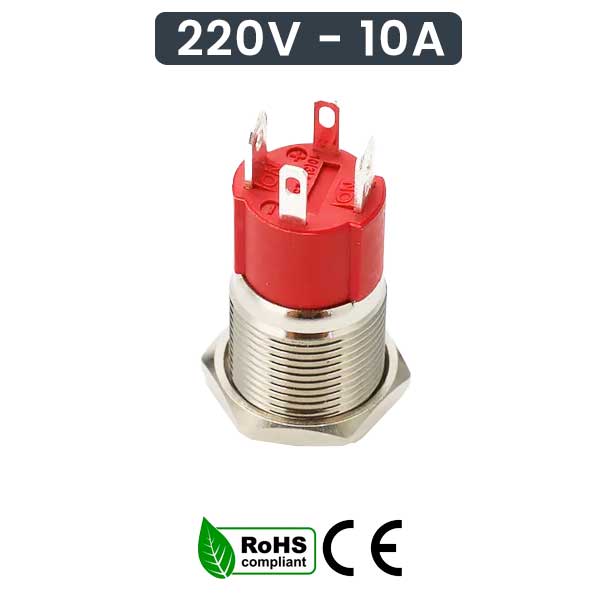

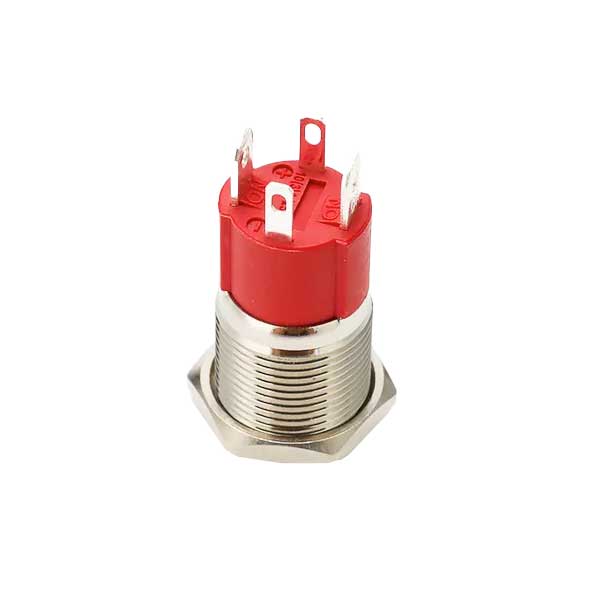

| Number of pins | 4 (2 LED + 2 contact) |
| Contact type | NO / NC |
| Body material | Stainless steel (Aluminum 304/316) |
| Protection class | IP65 |
| Anti-vandalism class | IK09 |
| Certifications | CE, RoHS |
| Button type | Flat, illuminated ring |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days from the delivery date, provided the product is kept in its original condition. Fast courier delivery within Romania.
