19mm Push Metal Button with Latch, 220V - 10A, Green LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

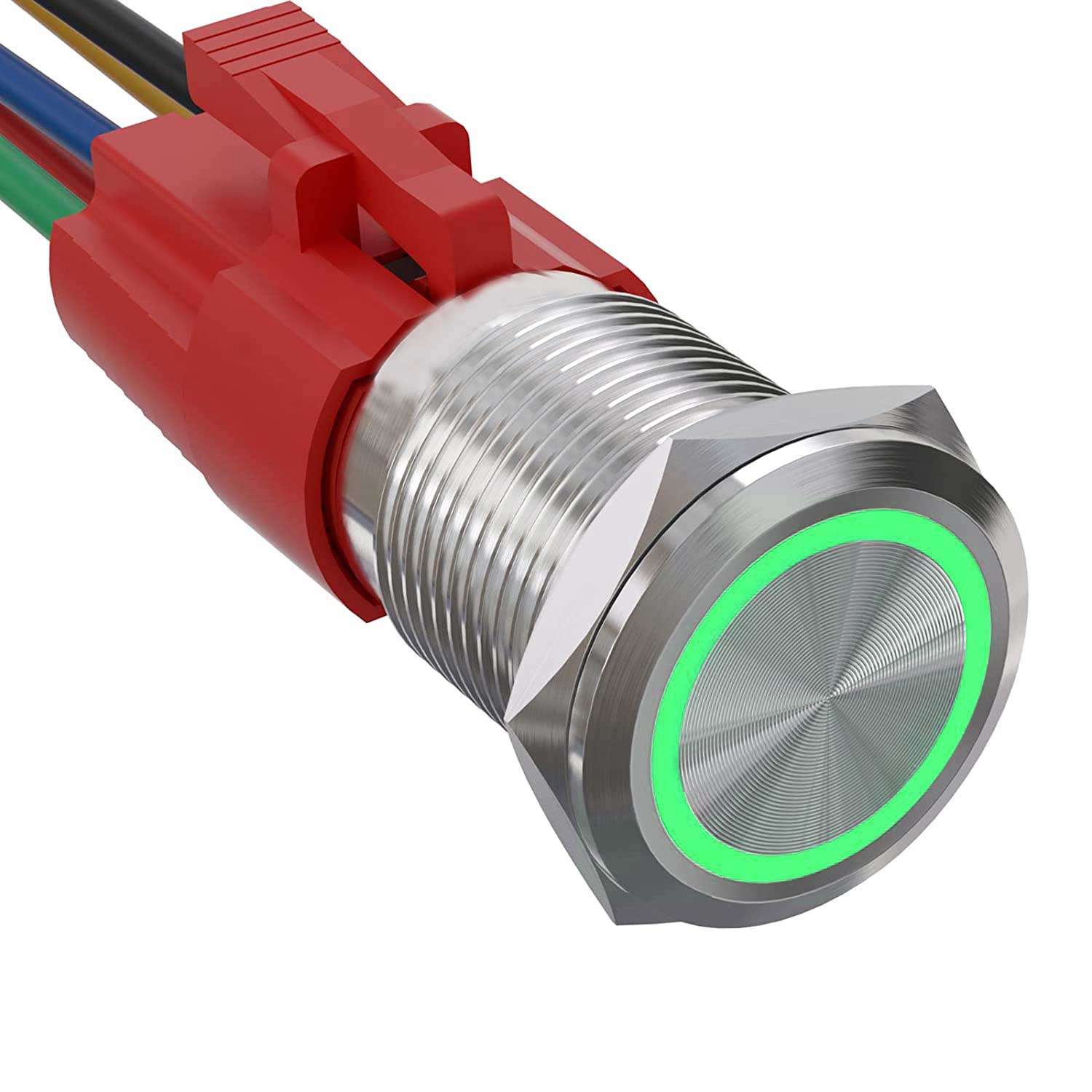

19mm Latching Metal Push Button with Green LED
The 19mm latching metal push button is the suitable solution for industrial control panels, machinery, and applications that require a robust, waterproof, and visually identifiable switch via its green LED ring. Powered at 220V and rated for currents up to 10A, this ElectroAZ button combines mechanical resistance with electrical reliability in a compact 19mm format.
What you get with this product
- IP65 protection against dust and water jets — operates without problems in wet or exposed industrial environments
- 304/316 aluminum casing with IK09 rating — resistance to vandalism and repeated mechanical stress
- Integrated green LED ring — button status is immediately visible, even in low light conditions
- NO and NC contacts available on the same button — maximum connection flexibility without additional parts
- M19 thread and detachable nut with rubber gasket — secure and watertight mounting in the control panel, without special tools

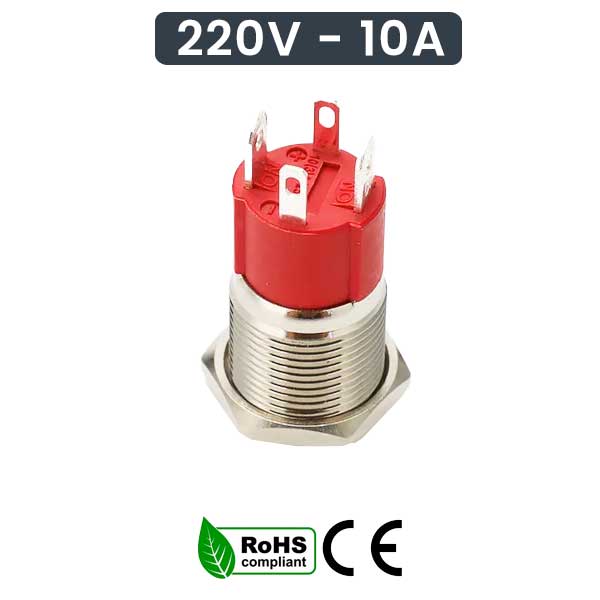

- RoHS and CE certifications — complies with European standards, suitable for professional and commercial installations
How it works and how to install it

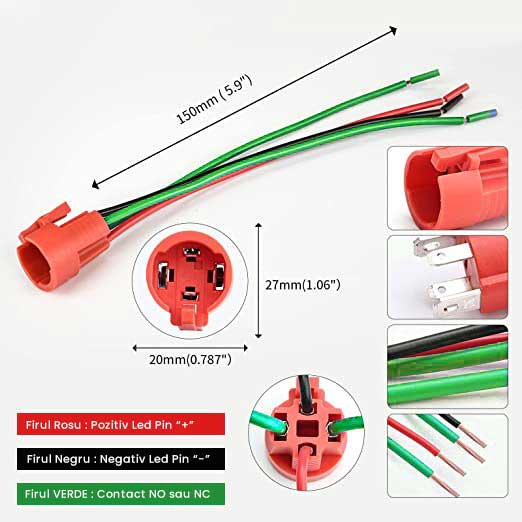

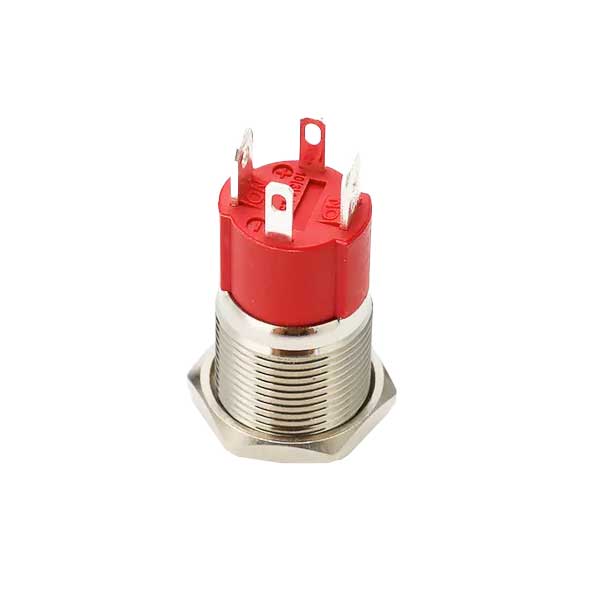

The 19mm latching push button is mounted in a 19mm hole using the M19 thread, secured with the included nut, and connected via its 4 pins — 2 for LED power and 2 for the circuit (NO or NC, depending on the application). Connection is straightforward and does not require advanced electrical knowledge, but working at 220V requires adherence to safety regulations. The wire connector is not included in the package and can be purchased separately.
Frequently Asked Questions
Is the wire connector included in the package?
No, the wire connector is purchased separately. The package includes the button, fixing nut, and rubber gasket.
Can this button be used outdoors or in humid environments?
Yes, IP65 protection allows use in humid environments and those exposed to water jets, including industrial or semi-outdoor applications.
What is the difference between NO and NC contacts on this button?
NO (normally open) means the circuit closes when pressed, and NC (normally closed) means the circuit breaks when pressed — both options are accessible via the button's 4 pins.
Technical Specifications
| Brand | ElectroAZ |
| SKU | EAZ-BP044 |
| Mounting diameter | 19 mm |
| Thread | M19 |
| Supply voltage | 220V AC |
| Maximum current | 10A |
| LED color | Green |
| Button type | Latching push button |
| Contact type | NO / NC |
| Number of pins | 4 (2 LED + 2 contact) |
| Housing material | 304 / 316 Aluminum |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Mechanical resistance | IK09 |
| Certifications | CE, RoHS |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of delivery, provided the product has not been used and is in its original packaging. Fast courier delivery throughout Romania.
