19mm Metal Push Button with Latch, 220V - 10A, Red LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

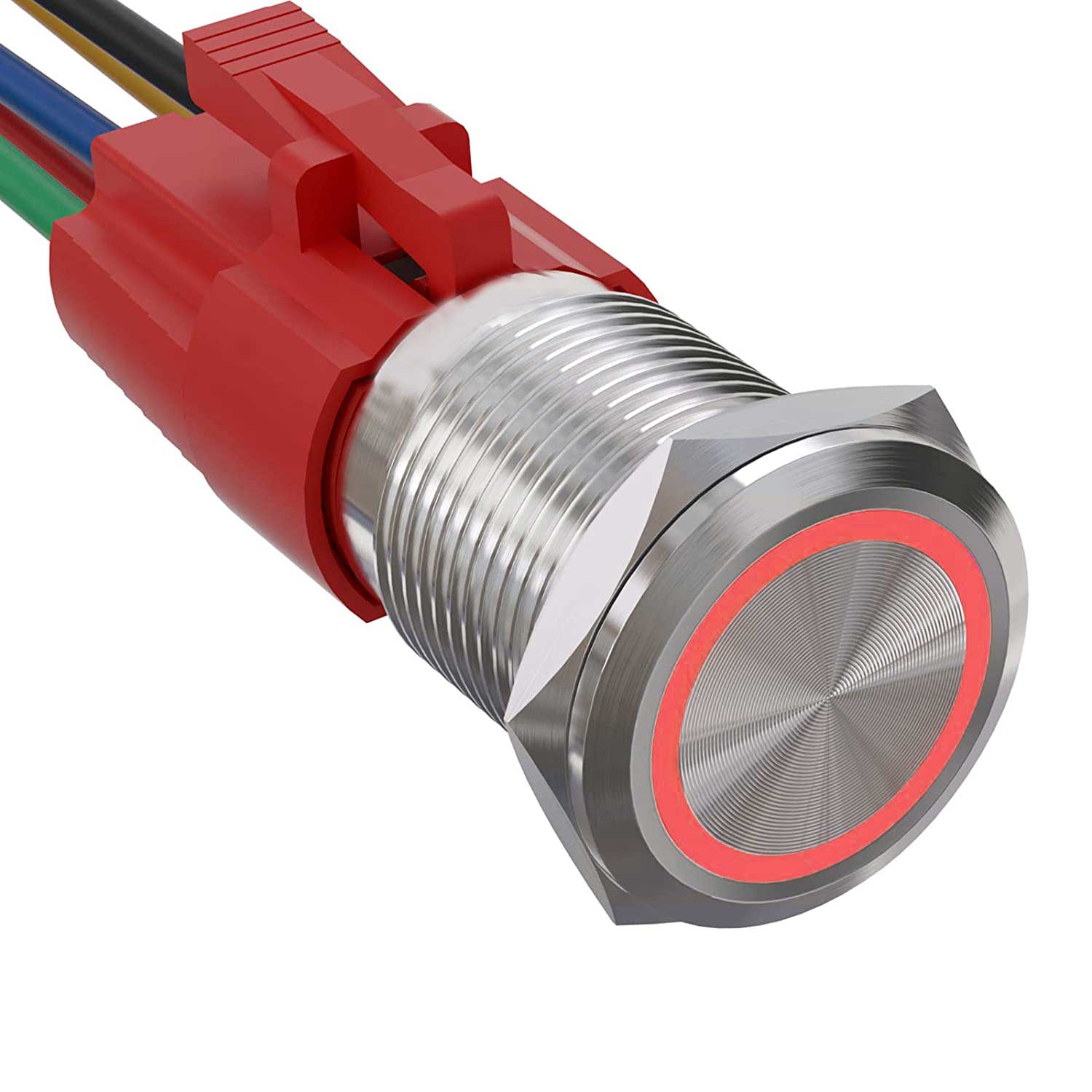

19mm Metal Latching Push Button with Red LED
The 19mm metal latching push button is a robust solution for industrial control panels, elevators, and machinery requiring a durable switch resistant to harsh environments. With a stainless steel body, IP65 protection, and a working voltage of 220V at 10A, this button offers long-term reliability in demanding applications. The red LED ring ensures clear visibility of the active status, even in low light conditions.
What you get with this product
- IP65 certified water and dust resistance — operates safely in wet environments, outdoors, or exposed industrial areas
- IK09 class anti-vandal stainless steel body — resists impacts and attempts at mechanical damage
- Integrated red LED ring — button status is immediately visible, without misinterpretations or confusion on the control panel
- Compatible with NO and NC contacts — maximum connection flexibility according to the existing electrical diagram
- Standard M19mm thread and removable nut — direct mounting in panels with a 19mm hole, without additional modifications
- Gold-plated silver alloy contacts — superior electrical conductivity and reduced wear over time
How it works and how to install

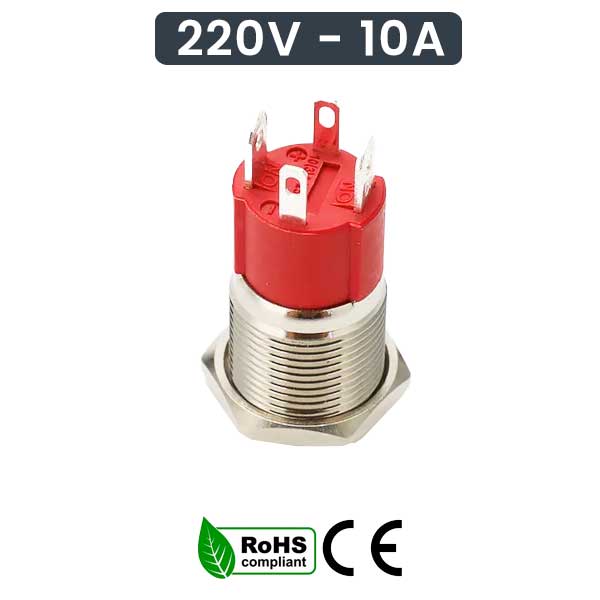

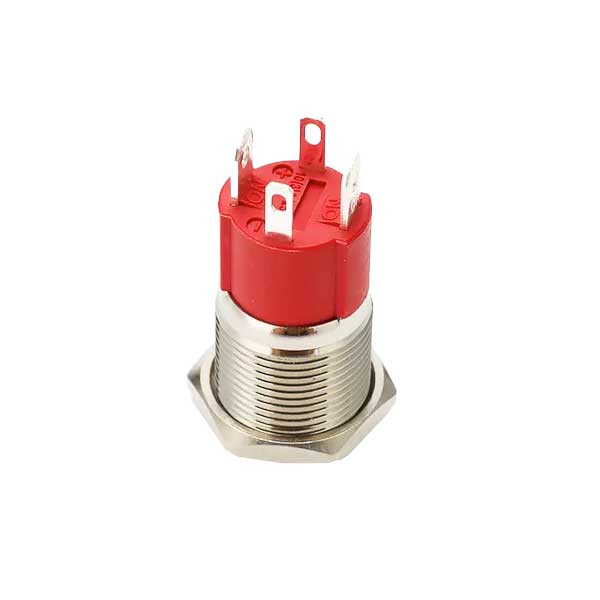

The latching push button maintains its activated state after pressing and returns to the initial position only upon a second press, unlike a momentary button. Installation is done by inserting the button into a 19mm hole in the control panel, securing it with the included nut, and connecting the 4 pins: 2 for LED power and 2 for the electrical contact (NO or NC). The wire harness is not included in the package and can be purchased separately.
Frequently Asked Questions

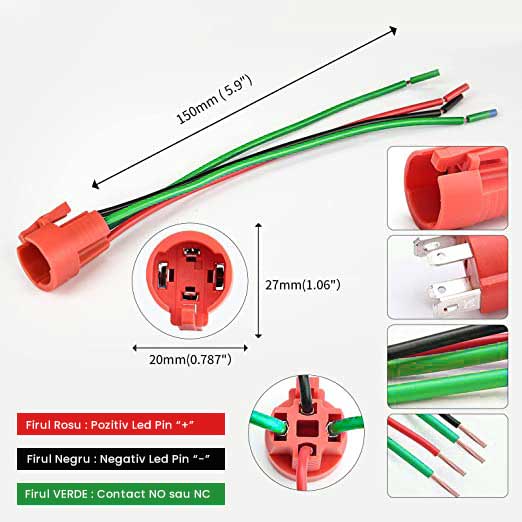

Is the wire harness included in the box?
No, the wire harness is not included in the package and must be purchased separately as a compatible accessory for the 19mm push button.
Can I use this button for both normally open and normally closed contacts?
Yes, the button has 4 pins that allow connection in either NO (normally open) or NC (normally closed) configuration, depending on the desired electrical diagram.
Is it suitable for outdoor mounting or in high humidity environments?
Yes, IP65 protection ensures resistance to water jets and dust, and the stainless steel body prevents corrosion, making it suitable for semi-outdoor installations or humid industrial environments.
Technical Specifications
| SKU | EAZ-BP041 |
| Brand | ElectroAZ |
| Mounting diameter | 19 mm (M19 thread) |
| Rated voltage | 220V AC |
| Rated current | 10A |
| LED color | Red |
| Button type | Latching Push Button (self-locking) |
| Contact type | NO / NC (4 pins) |
| Body material | Stainless steel 304/316 |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Mechanical resistance | IK09 |
| Certifications | CE, RoHS |
| Wire harness | Not included |
Warranty and support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. Returns accepted within 30 days of delivery, without justification. Fast courier delivery throughout Romania.
