19mm Metal Push Button with Latch, 220V - 10A, Blue LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

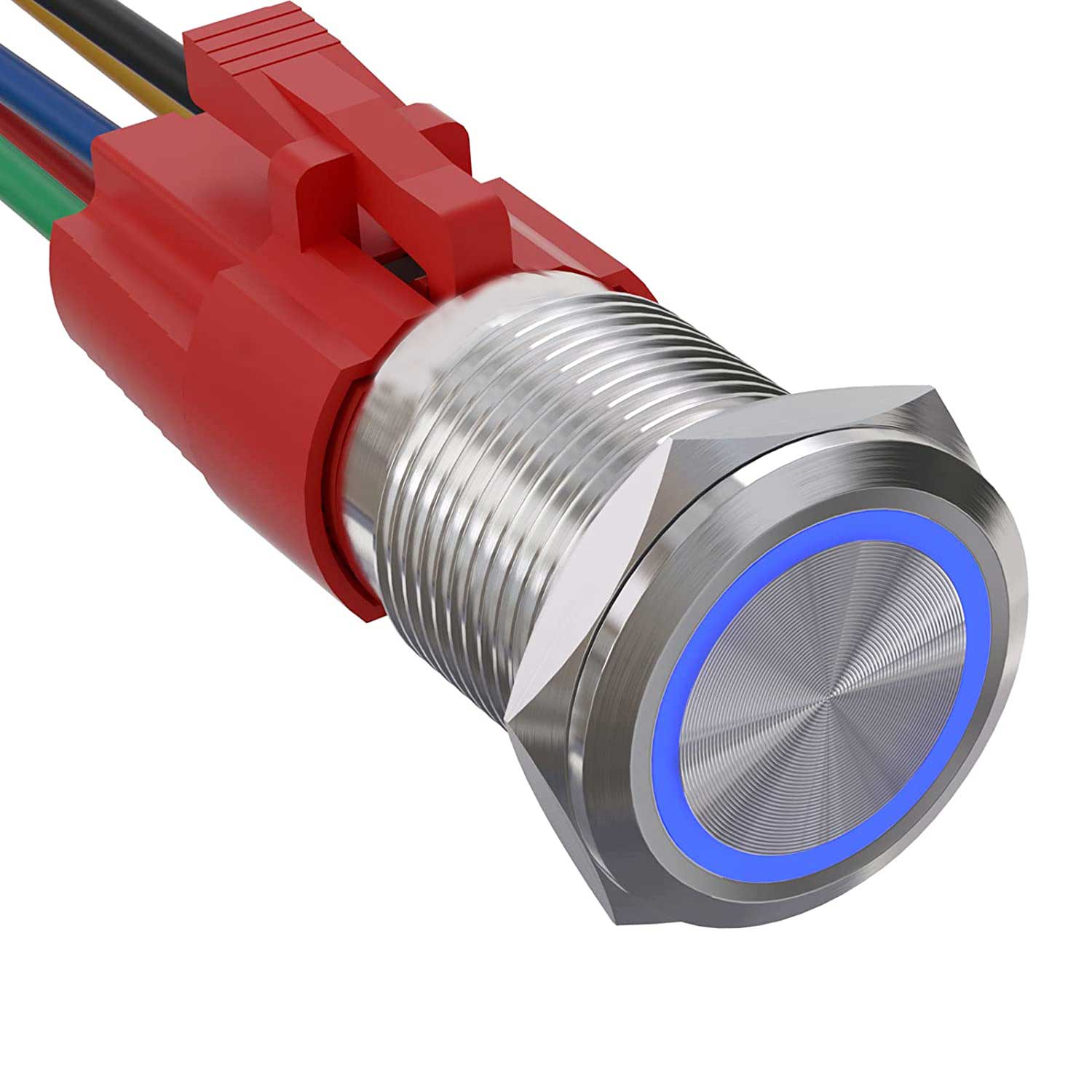

19mm Latching Metal Push Button with Blue LED
The 19mm latching metal push button is a robust solution for industrial control panels, machinery, and applications requiring a durable, waterproof, and visible switch in all lighting conditions. The stainless steel body, blue LED ring, and IP65 protection make it suitable for both indoor environments and installations exposed to moisture or intensive use.
What you get with this product

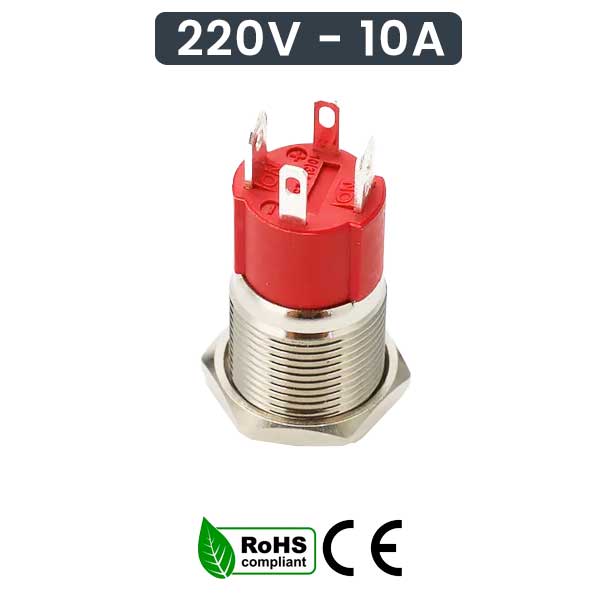

- Stable operation at 220V / 10A — directly compatible with standard electrical networks without additional components

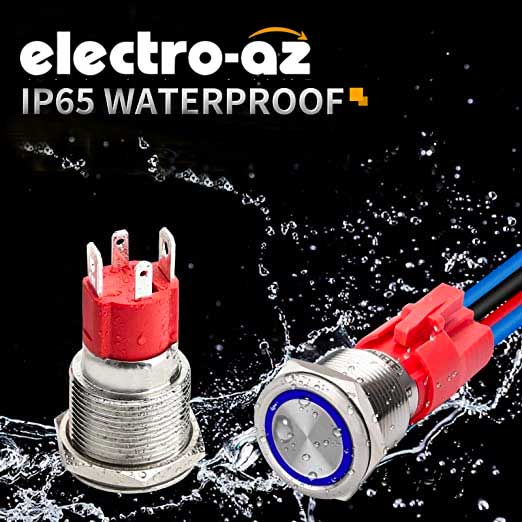

- IP65 protection — splash and moisture resistant, suitable for outdoor panels or wet industrial environments
- IK09 anti-vandalism rating — 304/316 aluminum metal body resists mechanical impact and wear over time
- Integrated blue LED ring — active status is instantly visible, even in dimly lit spaces
- NO and NC contacts available — maximum connection flexibility depending on the existing electrical schematic
- Quick mounting with M19 thread — detachable nut and rubber ring included, secure panel mounting without special tools
How it works and how to install

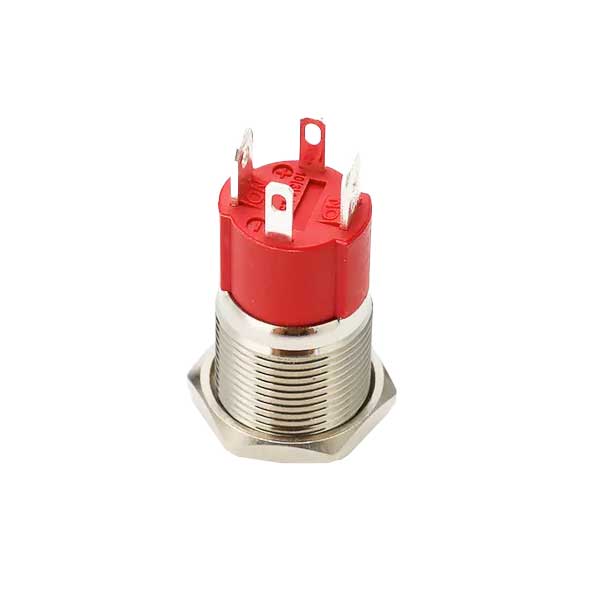

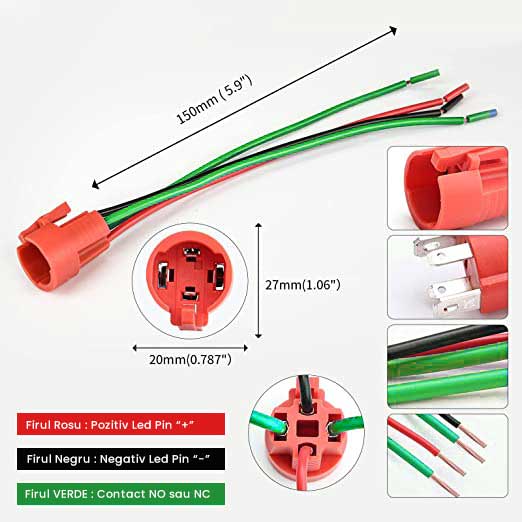

The 19mm latching push button maintains the circuit closed after pressing, returning to the initial state only upon a second press — useful wherever stable, not momentary, control is needed. Installation is done via a 19mm cutout in the control panel, securing with the included nut, and connecting to the 4 pins: 2 for LED power and 2 for the contact (NO or NC). The wire harness is not included in the package and can be purchased separately.
Frequently Asked Questions
Is the wire harness included in the box?
No, the wire harness is not included in the package and must be purchased separately, depending on your needs.
Does the button maintain its state or does it return on its own after pressing?
This is a latching button — it remains in the pressed position until a new press, unlike the momentary type which returns automatically.
Can it be used outdoors or in high humidity environments?
Yes, IP65 protection allows use in environments exposed to direct water splashing and dust, including outdoor or industrial panels.
Technical specifications
| Mounting diameter | 19 mm (M19 thread) |
| Operating voltage | 220V AC |
| Maximum current | 10A |
| LED color | Blue |
| Button type | Latching |
| Contact type | NO / NC (4 pins) |
| Protection rating | IP65 |
| Impact resistance | IK09 |
| Body material | Aluminum 304 / 316 (stainless steel) |
| Contact material | Gold-plated silver alloy |
| Certifications | CE, RoHS |
| Brand | ElectroAZ |
| SKU | EAZ-BP043 |
Warranty and Support
The product benefits from a 2-year warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without requiring justification. Delivery is fast via courier, with parcel tracking included.
