19mm Metal Push Button with Latch, 220V - 10A, White LED, ElectroAZ
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 34,99 lei | — |
| 3–4 pcs | 33,24 lei | 5% (−1,75 lei/unit) |
| 5–10 pcs | 31,49 lei | 10% (−3,50 lei/unit) |
| 11+ pcs | 29,74 lei | 15% (−5,25 lei/unit) |

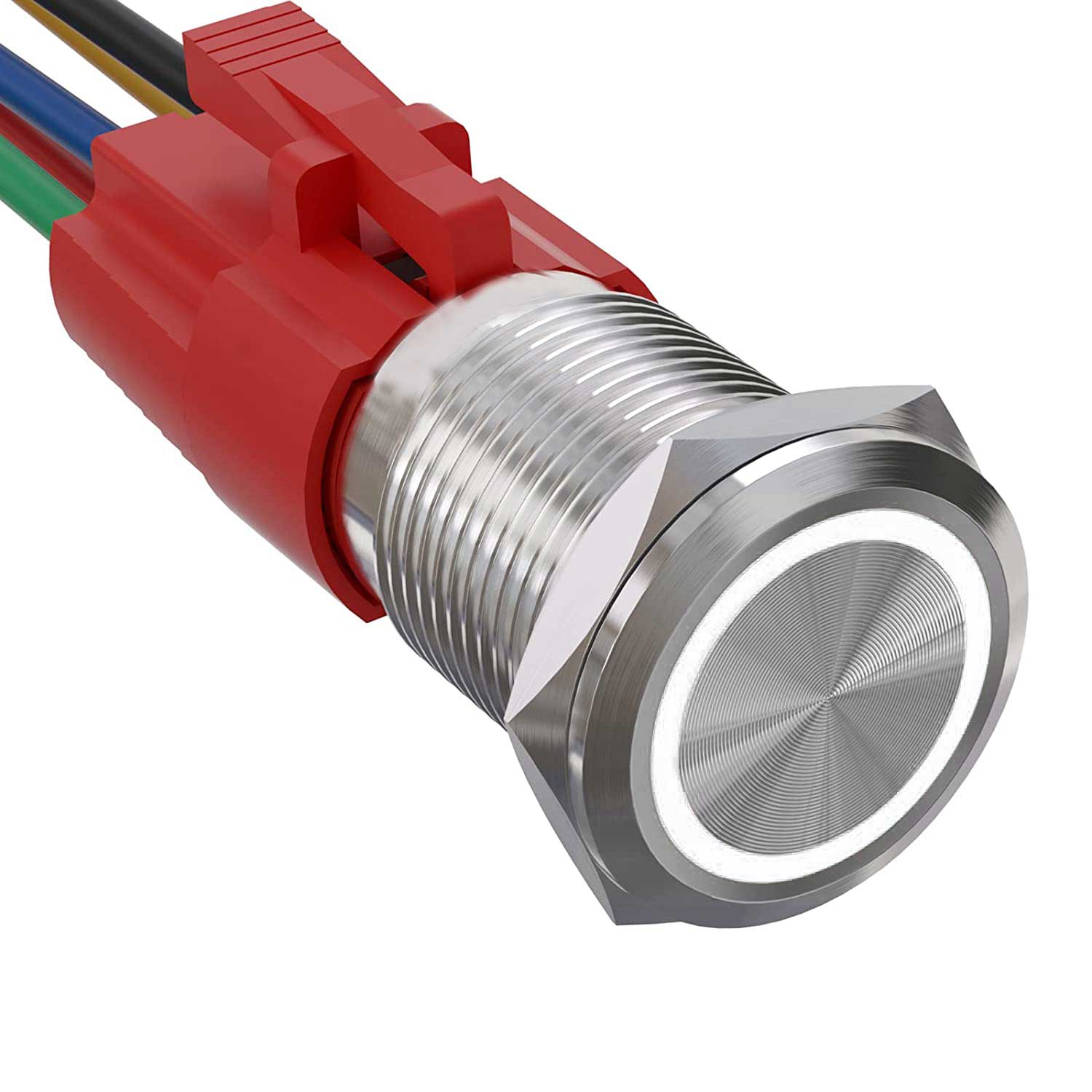

19mm Latching Metal Push Button with White LED
The 19mm latching metal push button is designed for industrial applications and control panels that require reliability and durability. With IP65 protection against moisture and a stainless steel construction, this push button operates stably at 220V and supports a current of up to 10A. The white LED ring ensures clear visibility of the active status, even in low-light conditions.
What you get with this product
- Guaranteed resistance to moisture and splashing — IP65 protection makes it suitable for industrial environments, outdoor panels, or areas with frequent condensation
- IK09 anti-vandal construction — the 304/316 stainless steel casing withstands mechanical impacts and intense wear over time
- Clear visual status indication — the white LED ring unambiguously signals active/inactive, reducing operating errors
- Compatible with NO and NC contacts — you can configure the button for normally open or normally closed depending on your automation scheme
- Direct mounting without special tools — standard M19mm thread, detachable nut, and rubber gasket included, precise fit in existing control panels
- Gold-plated silver alloy contacts — superior conductivity and oxidation resistance for extended connection lifespan
How it works and how to install it

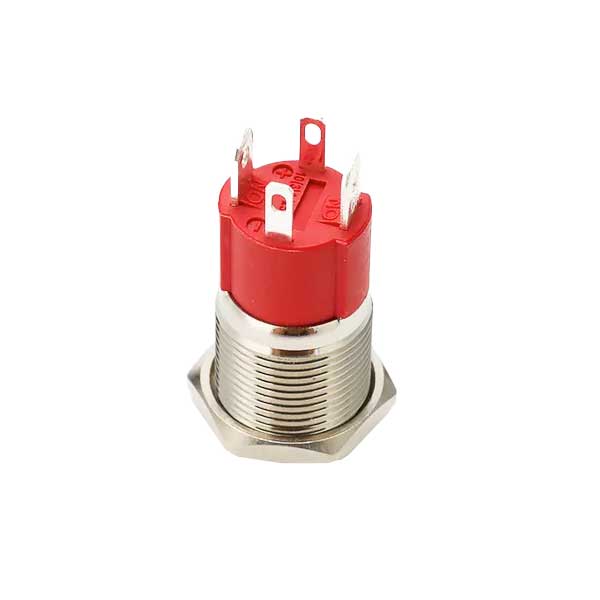

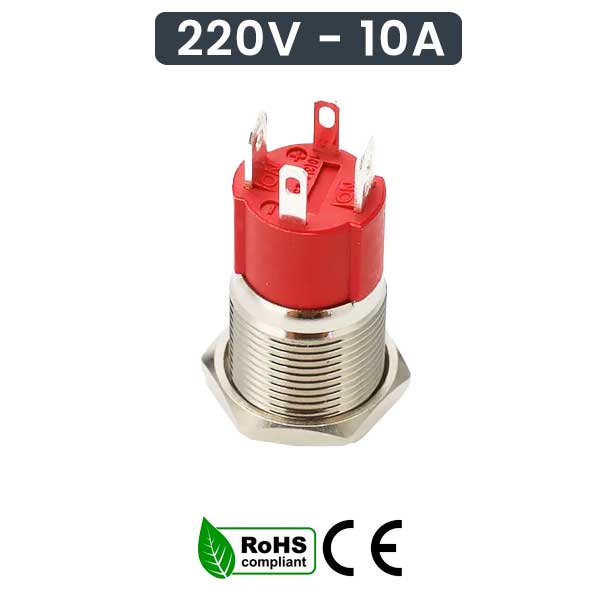

The 19mm latching push button is mounted in a 19mm hole by screwing it with the included nut — the operation takes a few minutes and does not require specialized tools. The 4 connection pins are separated into 2 pins for LED power and 2 pins for the electrical contact, which allows independent wiring of the light indicator from the control circuit. The contact type (NO or NC) is chosen during connection, depending on your installation logic.
Frequently Asked Questions

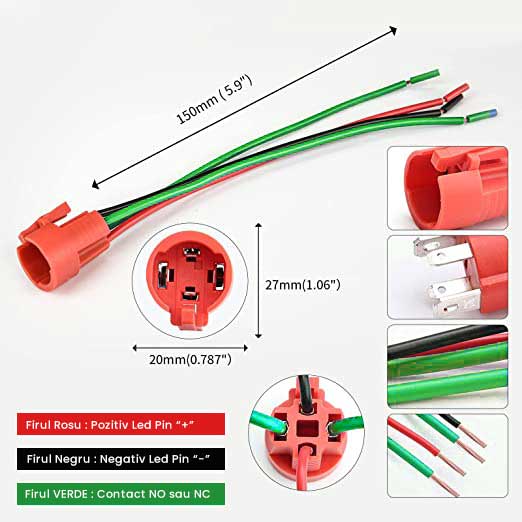

Is the wire connector included in the package?
No, the wire connector is purchased separately. The package includes the button, fixing nut, and rubber gasket.

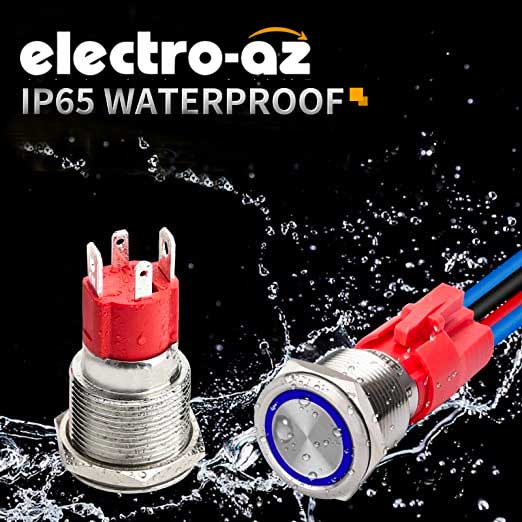

Can this button be used outdoors or in humid environments?
Yes, the IP65 protection allows use in environments exposed to splashing and moisture, but it is not intended for immersion in water.
What is the difference between NO and NC contact on this button?
NO (normally open) means the circuit is interrupted at rest and closes upon pressing; NC (normally closed) works in reverse — the circuit is closed at rest and opens upon pressing. The choice is made when connecting the pins.
Technical Specifications
| Mounting diameter | 19 mm (M19 thread) |
| Operating voltage | 220V AC |
| Maximum current | 10A |
| LED indicator color | White |
| Button type | Latching push button |
| Contact type | NO / NC (selectable) |
| Number of pins | 4 (2 LED + 2 contact) |
| Housing material | 304 / 316 Stainless Steel |
| Contact material | Gold-plated silver alloy |
| Protection class | IP65 |
| Impact resistance | IK09 |
| Certifications | CE, RoHS |
| Brand | ElectroAZ |
| SKU | EAZ-BP045 |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of receiving the order, without the obligation to justify the decision. Delivery is fast via courier, with dispatch confirmation by email.
