Auto Start Button, Push Type, Momentary Action
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 16,99 lei | — |
| 3–4 pcs | 16,14 lei | 5% (−0,85 lei/unit) |
| 5–10 pcs | 15,29 lei | 10% (−1,70 lei/unit) |
| 11+ pcs | 14,44 lei | 15% (−2,55 lei/unit) |

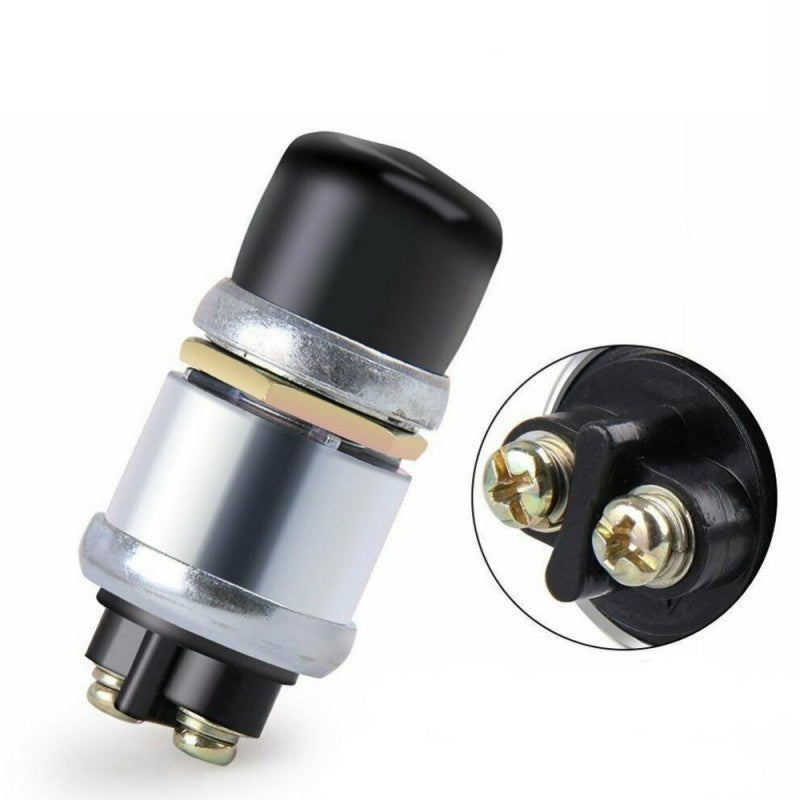

IP67 Waterproof Push Start Button for Cars and Boats
The momentary push-button car start button is designed for high-current applications, operating reliably at 12V DC / 60A or 24V DC / 40A. It is suitable for cars, trucks, lorries, boats, and speedboats, wherever a robust and harsh-environment-resistant starting contact is needed. The metal construction with copper contacts and IP67 sealing ensures safe operation regardless of environmental conditions.
What you get with this product
- Certified IP67 protection — dust-resistant and submersible, suitable for use on boats, agricultural machinery, or vehicles exposed to the elements
- Pure copper contact — high electrical conductivity and oxidation resistance for a lifespan of up to 10,000 activations
- Compatible with 12V and 24V DC systems — works on a wide range of vehicles and equipment without additional adapters

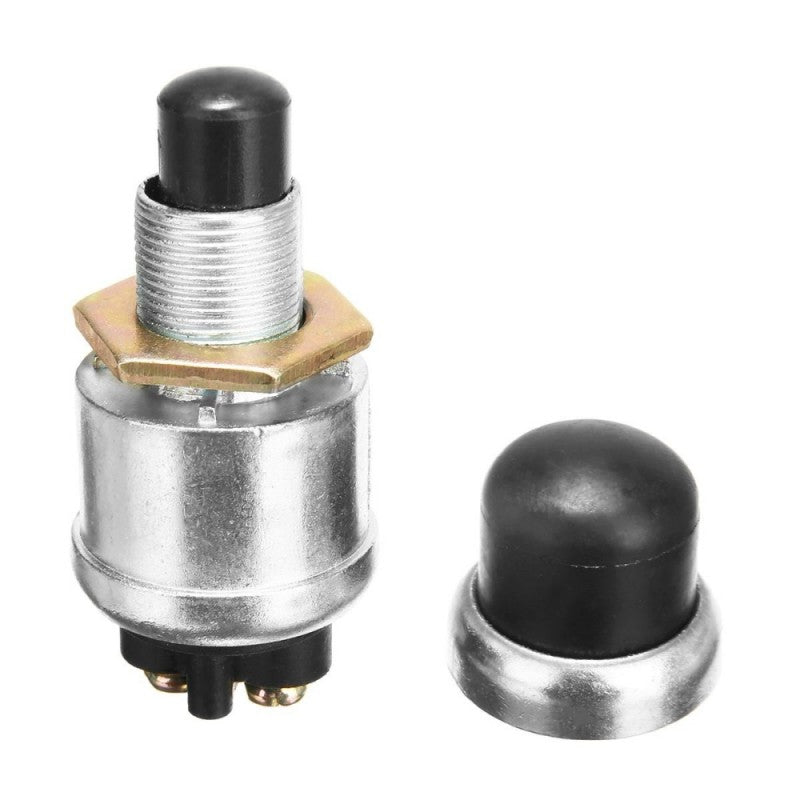

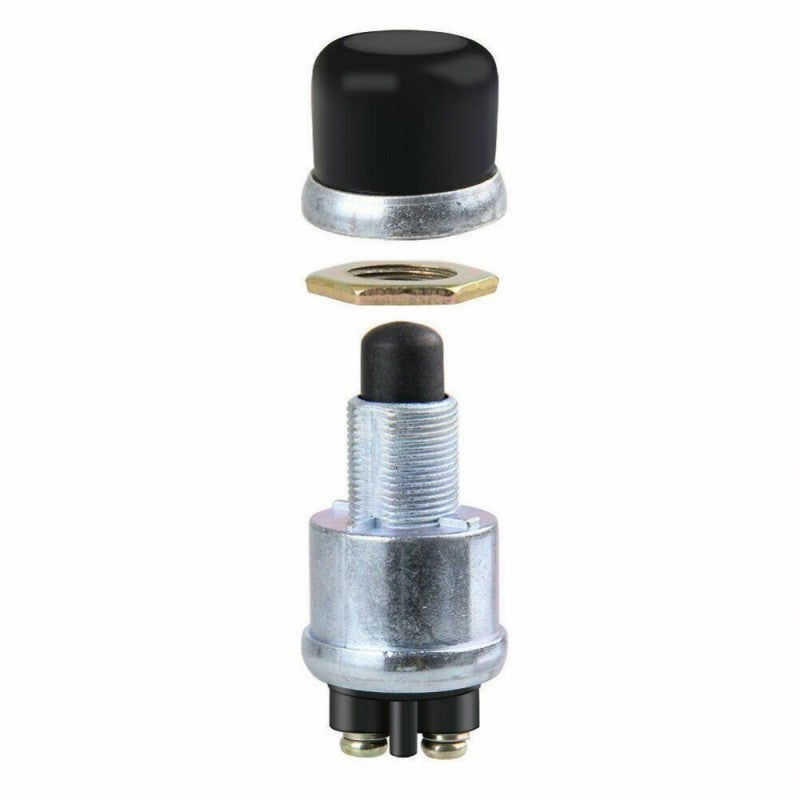

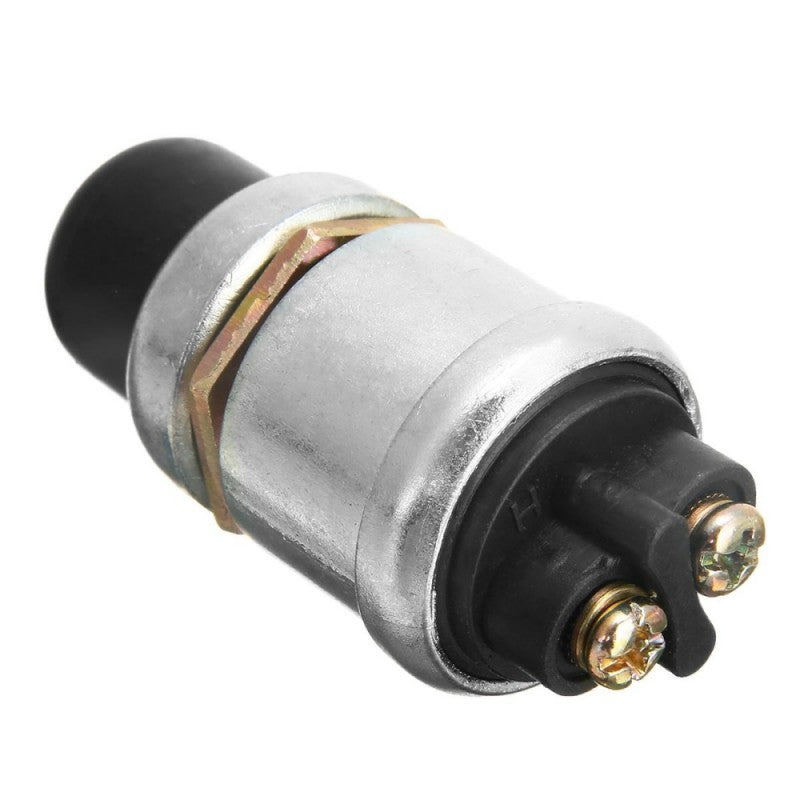

- Metal body with threaded nut and fixing nut included — quick and stable mounting in dashboards or control panels
- Integrated rubber cap — protects contacts from moisture and impurities even when the button is not activated

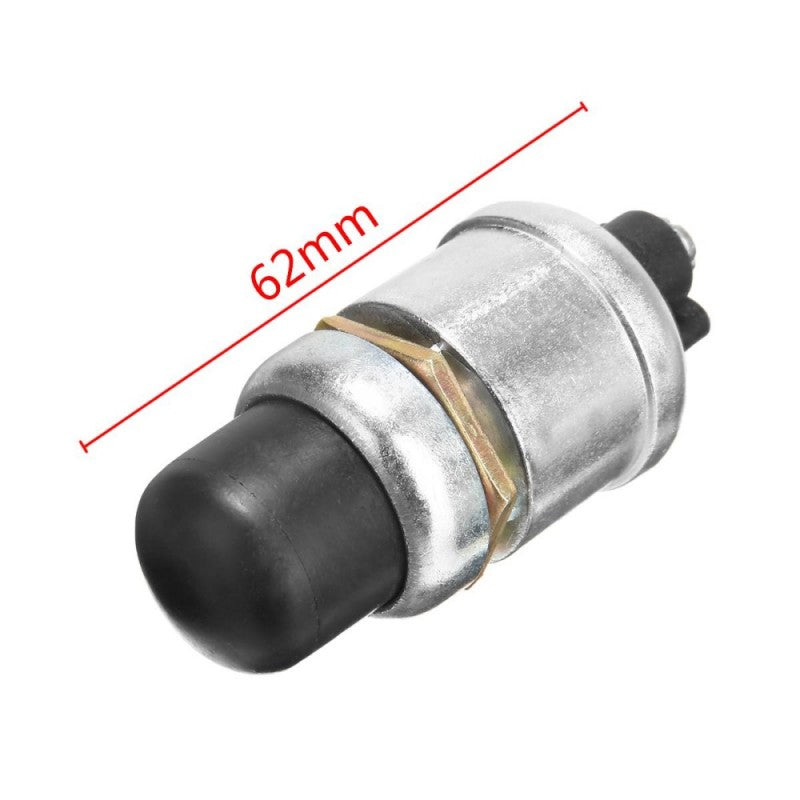

- Compact dimensions (62 mm length) — integrates discreetly into any panel without taking up unnecessary space
How it works and how to install it

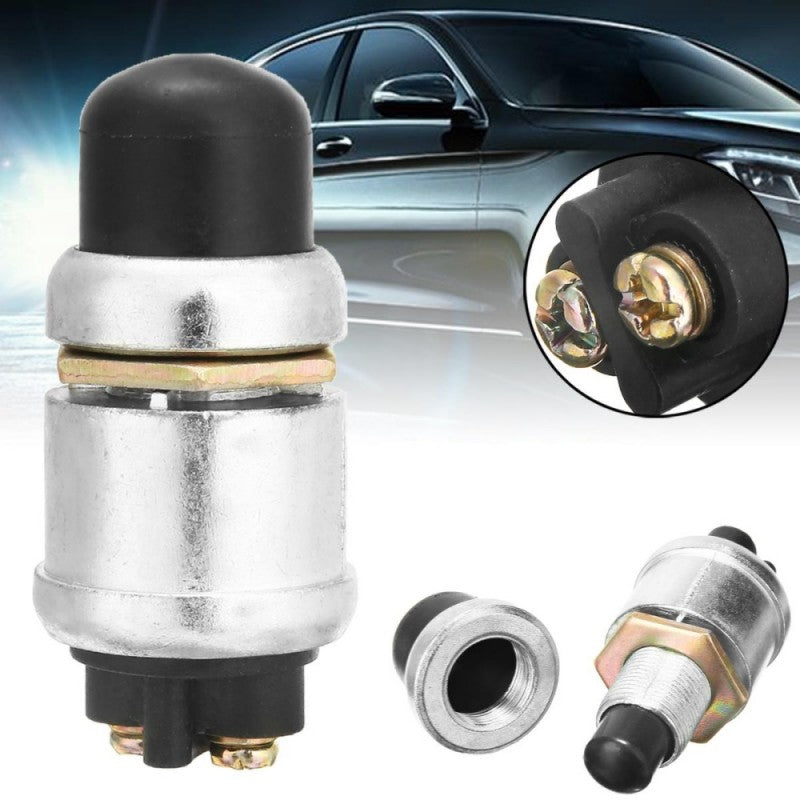

The button works on the principle of momentary contact: the electrical circuit is closed only while the button is pressed, automatically returning to its initial position upon release. Installation is done by inserting the button into a threaded hole in the dashboard, securing it with the included hexagonal nut, and connecting the wires to the two screw terminals at the back. It does not require special tools or advanced knowledge of car electrics.
Frequently Asked Questions
Does this button also work on a 24V truck?
Yes, the button supports 24V DC with a maximum current of 40A, making it compatible with the electrical systems of trucks and lorries.
Is it truly waterproof or just splash-resistant?
The button has an IP67 protection rating, meaning it can withstand temporary immersion in water up to 1 meter deep, not just superficial splashes.
What diameter hole do I need in the panel to mount the button?
The button is mounted through a threaded hole corresponding to its threaded metal body; the total length of the button is 62 mm, and the width is approximately 28 mm.

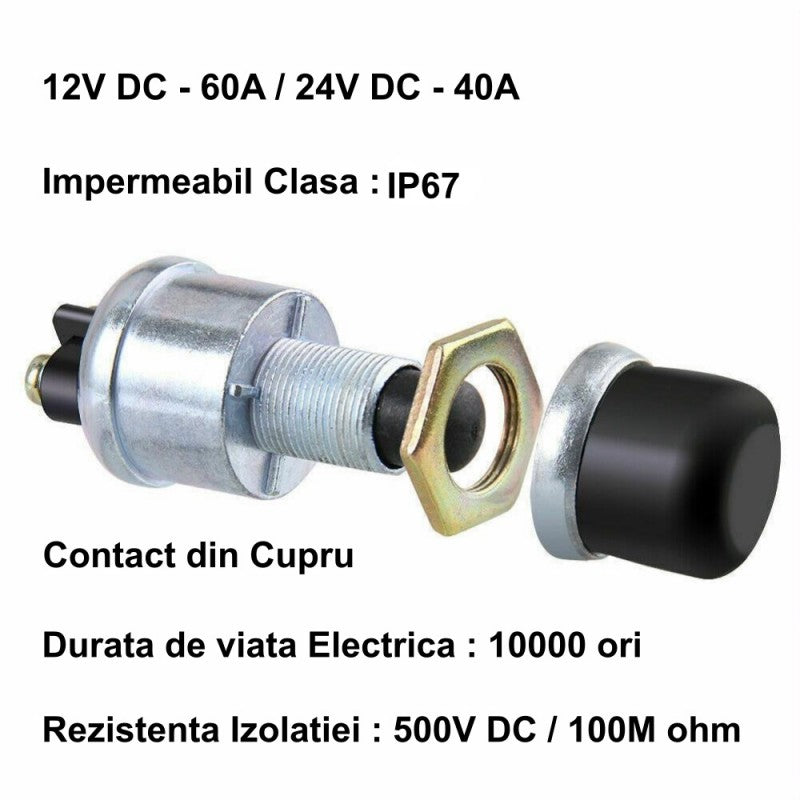

Technical Specifications

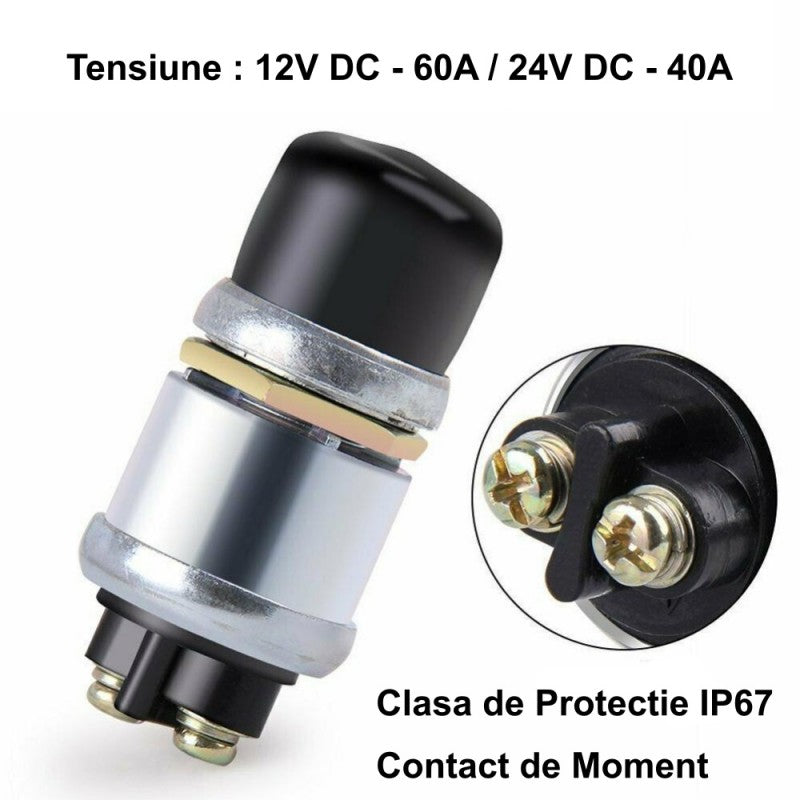

| Voltage / Current | 12V DC - 60A / 24V DC - 40A |
| Actuation Type | Momentary push |
| Protection Class | IP67 |
| Contact Material | Copper |
| Body Material | Metal, plastic, rubber |
| Insulation Resistance | 500V DC / 100M ohm (minimum) |
| Contact Resistance | max 50M ohm |
| Dielectric Strength | 1500V AC, 1 minute |
| Operating Temperature | -25°C / +85°C |
| Electrical Life | 10,000 activations |
| Dimensions | 62 mm length x 28 mm diameter |
| Package Contents | 1x push start button, fixing nut |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. You can return the product within 30 days of delivery, no justification required. Delivery is carried out quickly by courier, with shipping confirmation and package tracking available.
