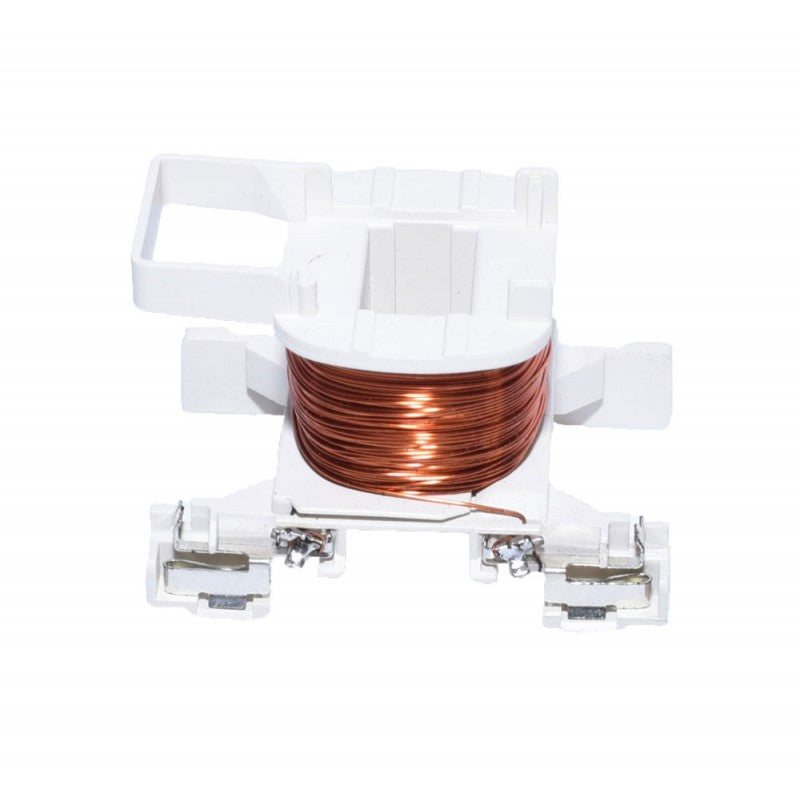

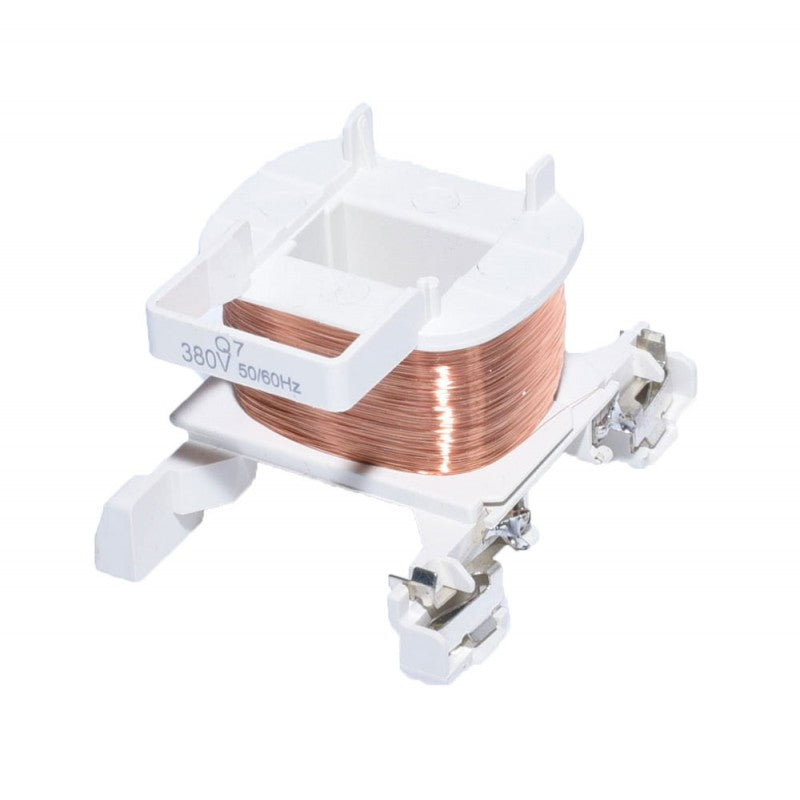

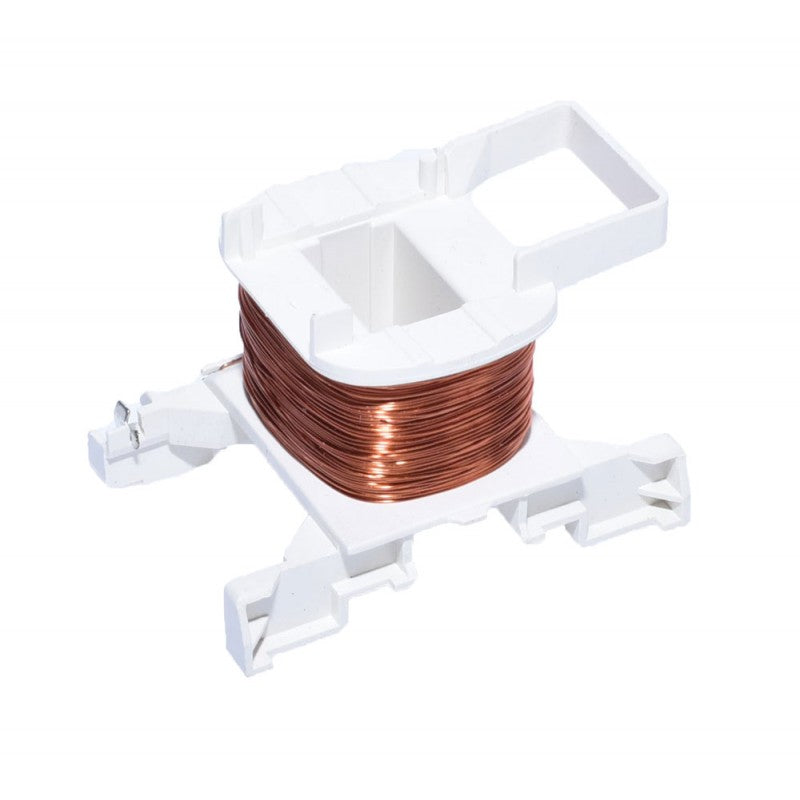

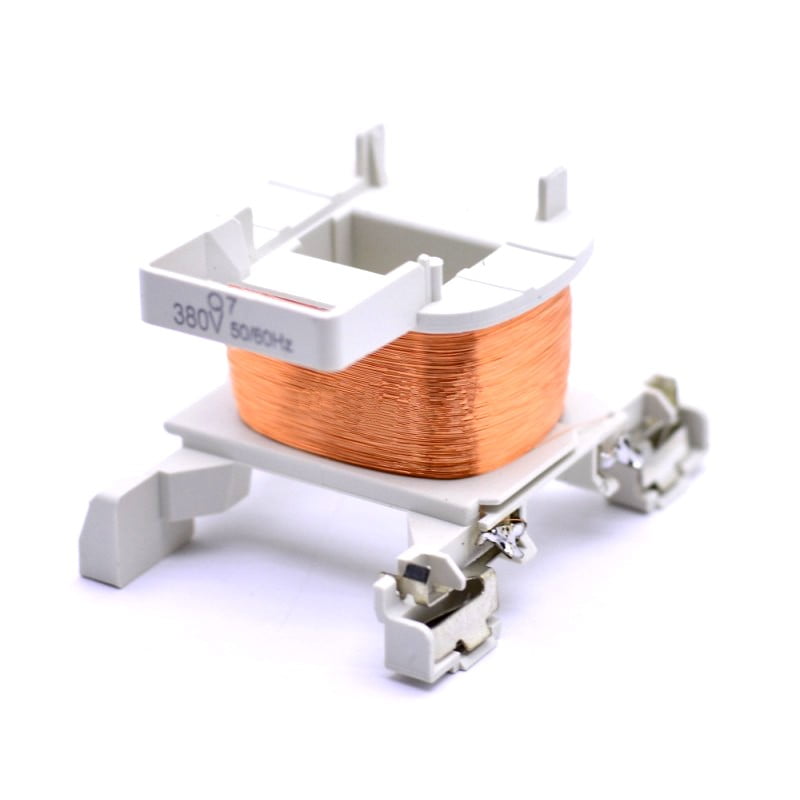

Small Coil Contactor LC1 Q7-380V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 22,99 lei | — |
| 3–4 pcs | 21,84 lei | 5% (−1,15 lei/unit) |
| 5–10 pcs | 20,69 lei | 10% (−2,30 lei/unit) |
| 11+ pcs | 19,54 lei | 15% (−3,45 lei/unit) |
380V Replacement Coil for Industrial LC1 Contactors
The LC1 Q7-380V Small Contactor Coil is the ideal replacement component for industrial electrical contactors, ensuring stable operation at 380V AC and 50/60Hz frequency. Compatible with the LC1 series, this coil allows for quick repair of faulty contactors without replacing the entire device, reducing maintenance costs.
What you get with this product
- Save money — replace only the faulty coil, not the entire contactor
- Quick repair — simple mechanical installation, no soldering or modifications
- Verified compatibility with LC1 contactors, Q7 series
- Stable operation at standard industrial voltage 380V, suitable for three-phase installations
- Long-term reliability due to industrial-grade copper winding
- Reduces downtime — spare stock available for urgent interventions
How it works and how to install it
The coil is mounted in the body of the LC1 contactor by mechanical fastening, replacing the worn or burnt coil. Installation requires complete power disconnection, removal of the old coil, and securing the new one according to the markings in the contactor body. The operation must be performed by qualified personnel, in accordance with electrical safety standards. After assembly, the electrical connection to the coil terminals is restored, observing the nominal voltage of 380V AC.
Frequently Asked Questions
Is it compatible with other contactor models besides LC1?
This coil is designed specifically for LC1 series Q7 contactors. Check the markings on your existing contactor before ordering.
Can I install it myself, or do I need a certified electrician?
Installation must be performed by authorized personnel for work with industrial voltages, in accordance with current regulations. Unprofessional intervention voids the warranty.
How do I know if my contactor coil is burnt?
Symptoms include: the contactor does not close on command, a smell of burnt plastic, an overheated coil, or a lack of reaction when command voltage is applied.
Technical Specifications
| Rated voltage | 380V AC |
| Frequency | 50/60 Hz |
| Current type | AC (alternating current) |
| Compatible series | LC1 Q7 |
| Number of poles | 1 |
| Winding material | Copper |
| Casing | Heat-resistant plastic |
| EAN | 0781499722009 |
Warranty and support
The product benefits from a 24-month warranty in accordance with Romanian legislation, covering manufacturing defects. 30-day return policy. Fast delivery by national courier. Improper installation by unauthorized personnel voids the warranty.
