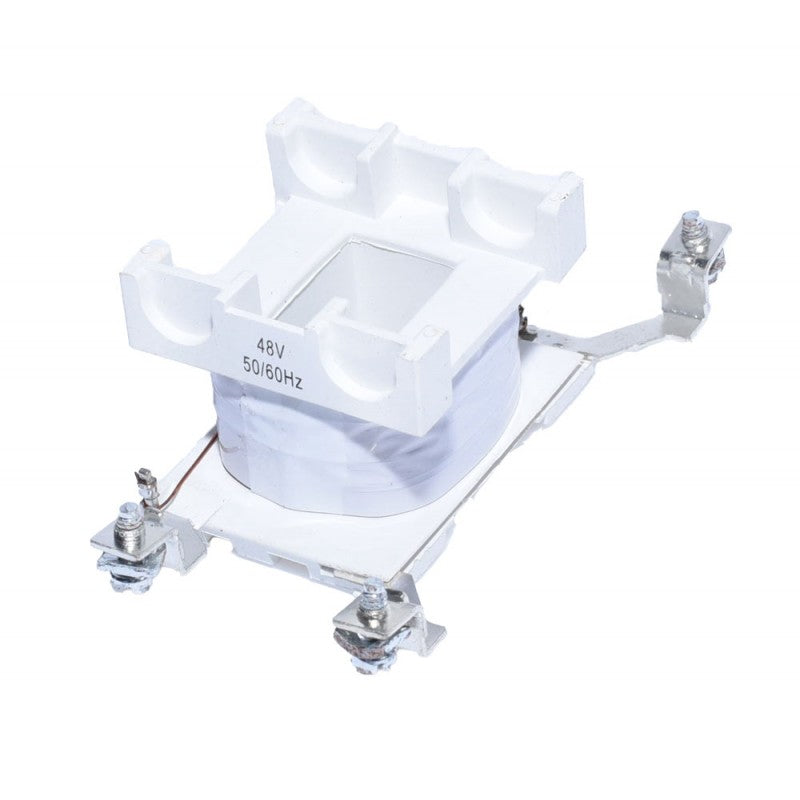

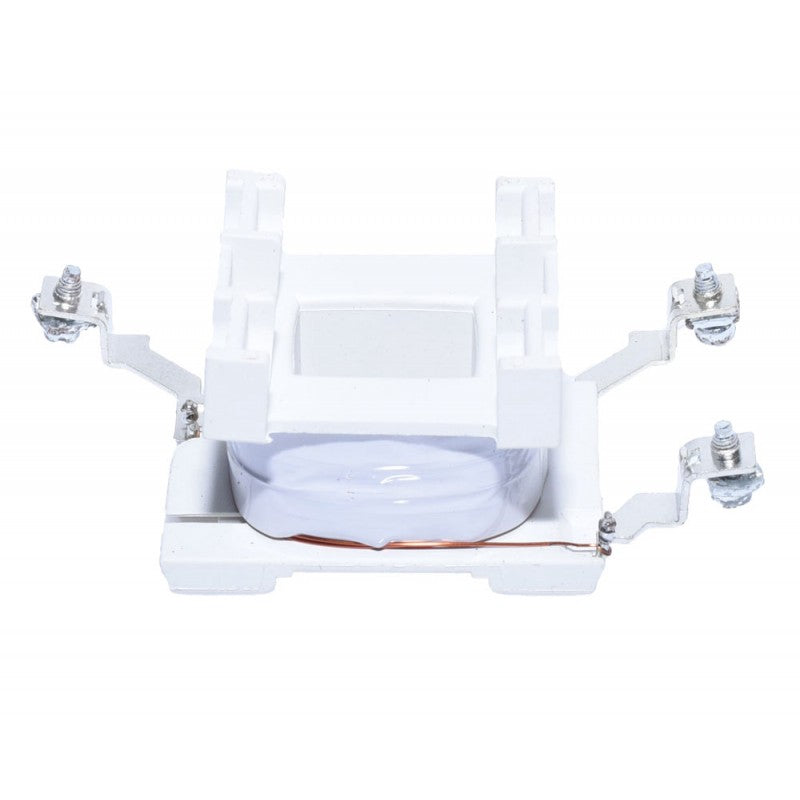

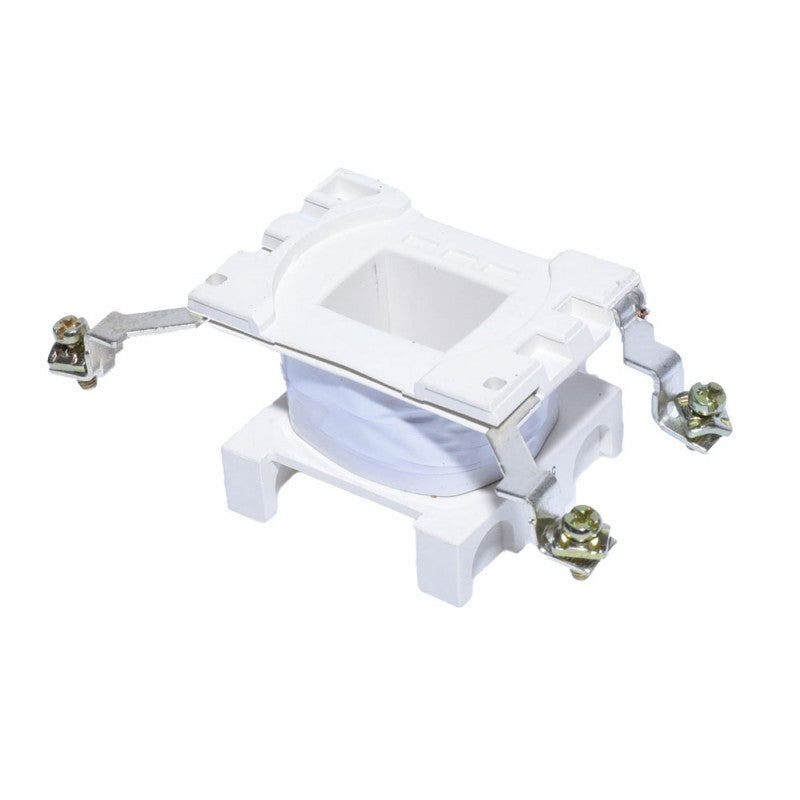

Large Contactor Coil LC1 AC-48V
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 33,99 lei | — |
| 3–4 pcs | 32,29 lei | 5% (−1,70 lei/unit) |
| 5–10 pcs | 30,59 lei | 10% (−3,40 lei/unit) |
| 11+ pcs | 28,89 lei | 15% (−5,10 lei/unit) |
AC-48V Replacement Coil for Industrial LC1 Contactors
The large LC1 AC-48V contactor coil ensures reliable operation of three-phase contactors in industrial and commercial electrical installations. Compatible with LC1D40 to LC1D95 series, this component is the quick solution for replacing faulty coils, avoiding the high costs of purchasing a new contactor. Designed for three-phase AC installations, it guarantees the operational continuity of equipment.
What you get with this product
- Universal compatibility with LC1D40, LC1D50, LC1D65, LC1D80, and LC1D95 contactors — one part for multiple models
- Substantial savings compared to replacing the entire contactor — quick repair without significant investment
- Fast installation using a screw-fastening system — reassembled in under 15 minutes even by personnel with average experience
- Stable operation at 48V AC supply voltage — ideal for standard industrial circuits with voltage transformation
- Robust construction with heat-resistant plastic casing — withstands high temperatures generated by intensive operation
- Reduced equipment downtime — essential spare stock for preventive maintenance
How it works and how to install it
The coil generates the electromagnetic field necessary to actuate the main contacts of the contactor when supplied with 48V AC voltage and 50/60Hz frequency. For installation, completely disconnect the power supply, remove the cover and fastening screws, remove the old coil, position the new coil ensuring correct alignment of the connection pins, fasten with the included screws, and reconnect the power wires respecting polarity.
No special tools are required — a standard screwdriver is sufficient. Before commissioning, visually check for correct fastening and test the contactor's operation at rated voltage.
Frequently Asked Questions
How do I know if the coil is compatible with my contactor?
Check the contactor model engraved on the casing — the coil is compatible with LC1D40, LC1D50, LC1D65, LC1D80, and LC1D95. Ensure that the supply voltage of your circuit is 48V AC.
Can it operate at 50V or 45V instead of 48V?
The coil tolerates a variation of plus or minus 10 percent from the nominal voltage, but optimal operation is guaranteed at 48V AC. Larger deviations can reduce lifespan or cause malfunctions.
Is the coil difficult to replace, or do I need to call a certified electrician?
Replacement is simple and quick for anyone with basic electrical knowledge. It is mandatory to completely disconnect the power supply before intervention. If the installation is subject to strict safety regulations, intervention by a certified electrician is recommended.
Technical Specifications
| Rated Voltage | 48V AC |
| Frequency | 50/60Hz |
| Current Type | AC (alternating current) |
| Number of Phases | 3 phases |
| Compatibility | LC1D40, LC1D50, LC1D65, LC1D80, LC1D95 |
| Casing Material | Heat-resistant plastic |
| Mounting System | Metal screw fastening |
| Package Contents | 1x Large LC1 AC-48V Contactor Coil |
| EAN Code | 0781499722177 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with current Romanian legislation, covering manufacturing defects. You have the right to return within 30 days of receipt if the product does not meet expectations. Delivery is fast via national courier, with SMS and email confirmation.
