Contactor LC1 Coil - 24V AC
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 37,99 lei | — |
| 3–4 pcs | 36,09 lei | 5% (−1,90 lei/unit) |
| 5–10 pcs | 34,19 lei | 10% (−3,80 lei/unit) |
| 11+ pcs | 32,29 lei | 15% (−5,70 lei/unit) |

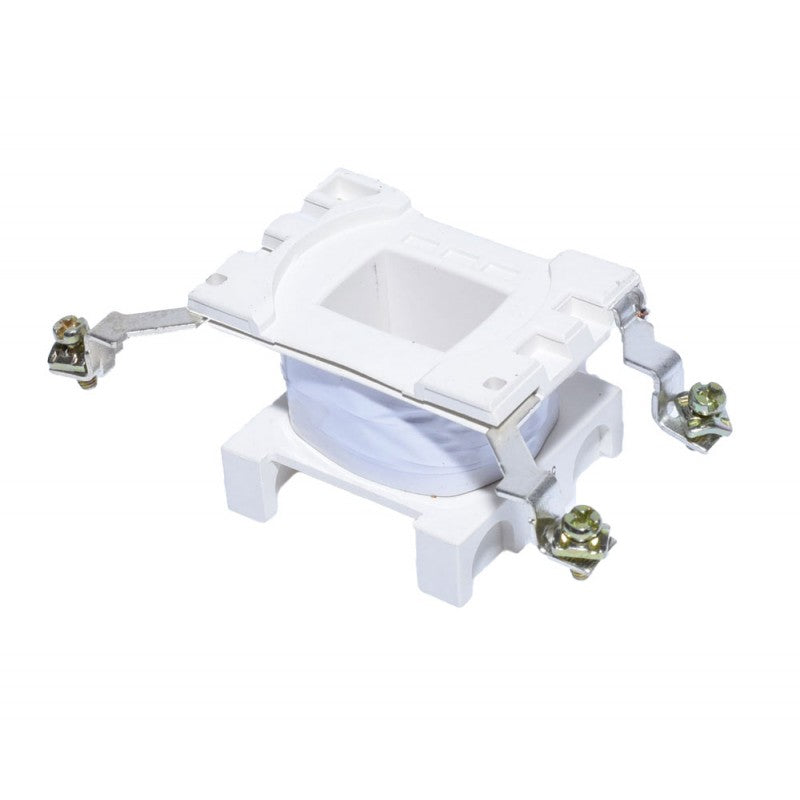

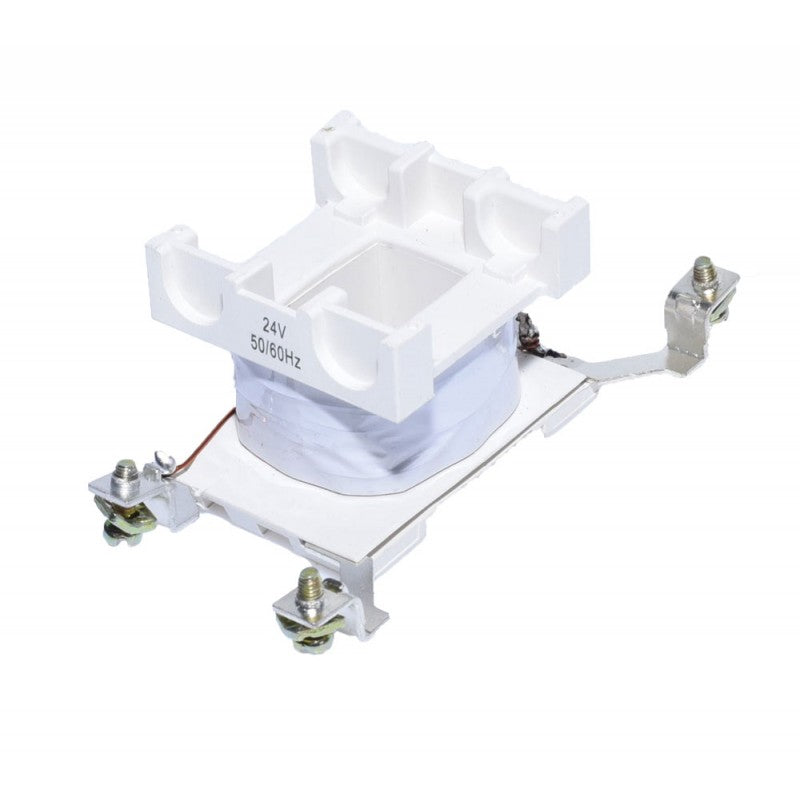

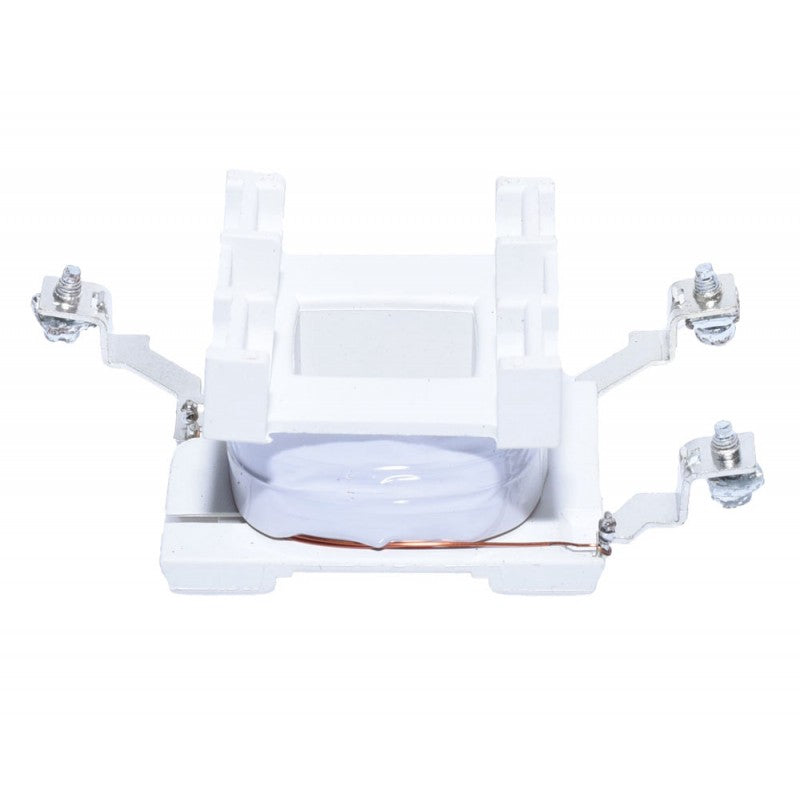

LC1 24V AC Three-phase Contactor Coil for Industrial Installations
The replacement coil for LC1D three-phase contactors ensures the reliable operation of industrial and commercial electrical installations. Compatible with LC1D40 to LC1D95 models, this 24V AC coil is the quick solution for maintaining electrical equipment without replacing the entire contactor. Robust design and simple mounting for operational continuity.
What you get with this product
- Verified compatibility with LC1D40, LC1D50, LC1D65, LC1D80, and LC1D95 contactors for direct replacement
- Substantial savings compared to purchasing a complete new contactor
- Quick installation on existing contactors without structural modifications
- Stable operation at 24V AC voltage for three-phase applications
- Durable construction with thermal insulation for continuous operation
- Reduces installation downtime through rapid replacement
How it works and how to install
The coil is mounted on the body of the existing three-phase contactor using a clip-on fastening system and screw fixation. The electrical connection is made via clearly marked terminals on the coil housing. Installation requires complete disconnection of the contactor's power supply, removal of the faulty coil, and mounting of the new coil while observing polarity. The intervention takes approximately 15-20 minutes and must be performed by an authorized electrician in accordance with safety regulations.
Frequently Asked Questions
Is the coil compatible with my LC1D contactor?
Yes, the coil works with LC1D40, LC1D50, LC1D65, LC1D80, and LC1D95 models. Check the LC1D code on your existing contactor before purchasing.
Can I install the coil myself or do I need an electrician?
Installation must be performed by an authorized electrician to comply with safety regulations and maintain the warranty. Intervention on live installations is dangerous.
How long does it take to replace the coil on the contactor?
A qualified electrician completes the replacement in 15-20 minutes after disconnecting the power supply. The total time includes removing the old coil and installing the new one.
Technical Specifications
| Supply voltage | 24V AC |
| Frequency | 50/60Hz |
| Current type | AC (alternating current) |
| Compatibility | LC1D40, LC1D50, LC1D65, LC1D80, LC1D95 |
| Number of phases | 3 phases |
| Product type | LC1 Contactor Coil |
| Category | Contactor Accessory |
| EAN | 0781499722016 |
Warranty and Support
The product benefits from a 24-month warranty in accordance with Romanian law for manufacturing defects. 30-day return policy from purchase. Fast delivery via national courier. Installation must be performed by qualified personnel to maintain warranty validity.
