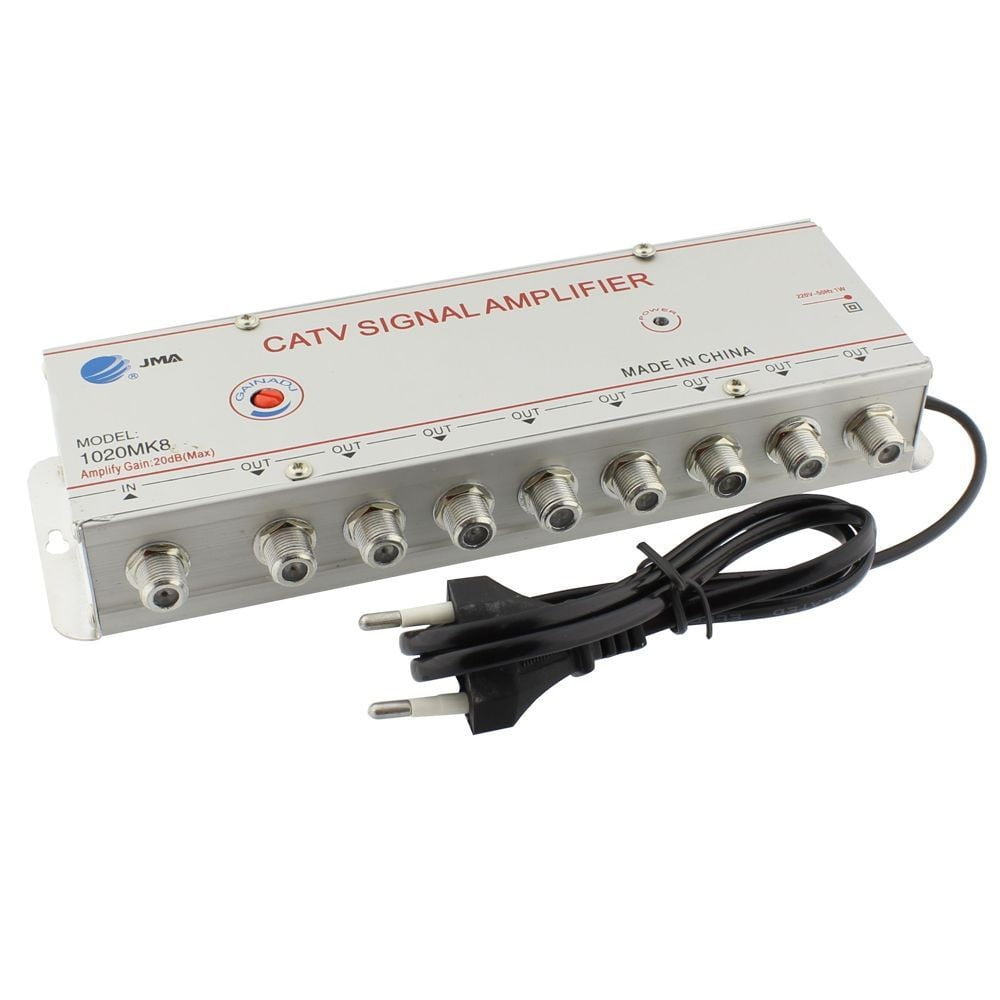

TV signal amplifier, 8-way splitter
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 103,99 lei | — |
| 3–4 pcs | 98,79 lei | 5% (−5,20 lei/unit) |
| 5–10 pcs | 93,59 lei | 10% (−10,40 lei/unit) |
| 11+ pcs | 88,39 lei | 15% (−15,60 lei/unit) |
8-output TV signal amplifier for clear reception
The TV signal amplifier with an integrated 8-output splitter solves the problem of weak signals or frozen images when distributing TV cable to multiple rooms or screens. Suitable for homes with multiple TVs, as well as for hotels, restaurants, or commercial spaces, the device amplifies and distributes the signal simultaneously to up to 8 TVs without degrading image quality.
What you get with this product
- TV signal distributed to 8 TVs from the same cable, without blurry or frozen images
- Manually adjustable amplification up to 20 dB — you adjust the optimal level with a screwdriver directly on the device
- Compatible with Digi, RCS&RDS, Orange TV, Vodafone TV, and other cable or satellite networks
- Aluminum metal casing — wear-resistant, efficient thermal dissipation for continuous operation
- Can also function as a passive splitter without power, when amplification is not needed
- Low power consumption of only 1W — can remain permanently connected without a noticeable impact on your electricity bill
How it works and how to install it

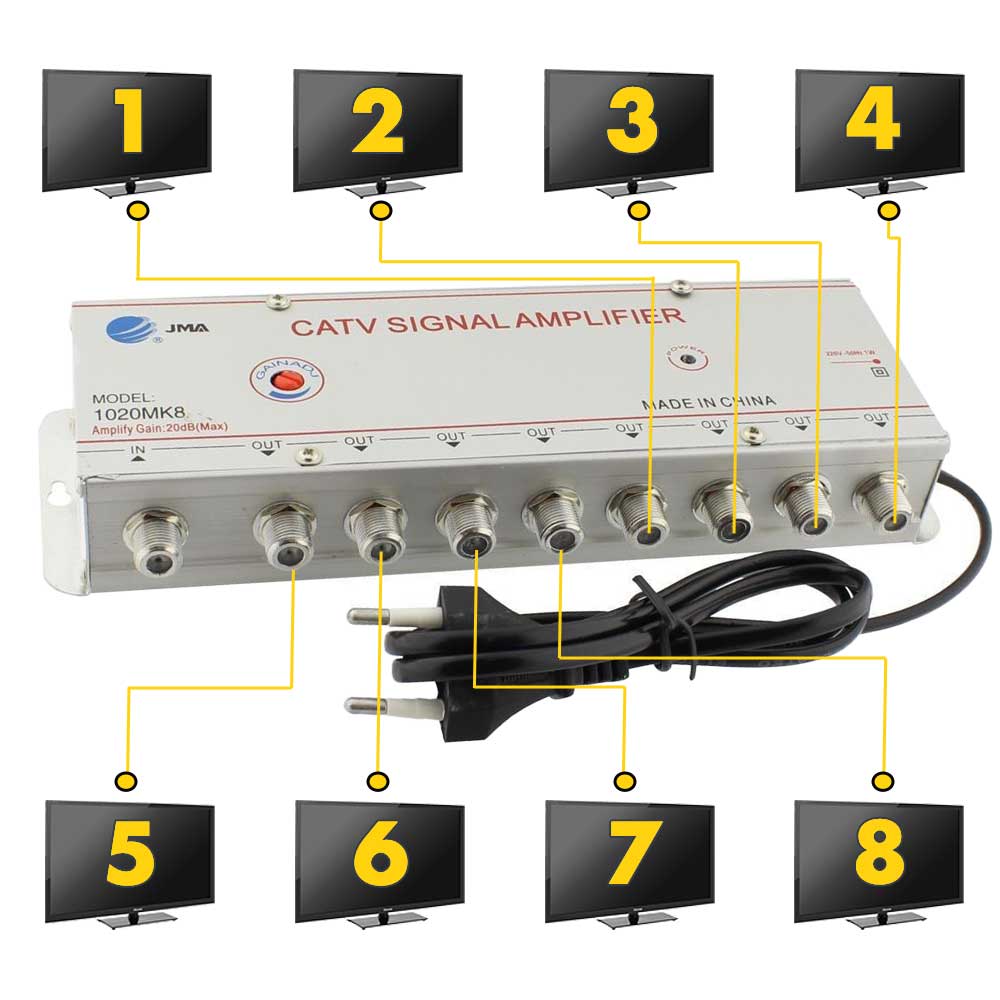

The amplifier is installed at the TV cable's entry point into the property: you connect the main cable to the IN jack, then distribute the cables to each TV through the 8 OUT jacks with F-type connectors. You plug the device into a 220V outlet and adjust the amplification level with a screwdriver via the red potentiometer on the front panel. Installation does not require advanced technical knowledge — all connections are clearly marked on the casing.
Frequently Asked Questions
Does it work even without being plugged in?
Yes, without power, the device functions as a passive splitter, but the signal will not be amplified and may be weaker on more distant TVs.
Is it compatible with cable TV and satellite TV simultaneously?
The device is compatible with both signal types — cable TV (CATV) and satellite — but cannot simultaneously distribute two different signal sources.
What type of connectors does it use, and do I need adapters?
All inputs and outputs are F-type connectors, standard for coaxial TV cables. Most existing cables in installations are already compatible or only require a simple F-connector, without special adapters.
Technical Specifications
| Model | JMA 1020MK8 |
| Product Type | CATV amplifier with splitter |
| Number of Outputs | 8 x OUT (F-type connector) |
| Number of Inputs | 1 x IN (F-type connector) |
| Maximum Amplification | 20 dB |
| Signal Adjustment | Manual, via potentiometer |
| Power Supply | 220V / 50Hz |
| Power Consumption | 1W |

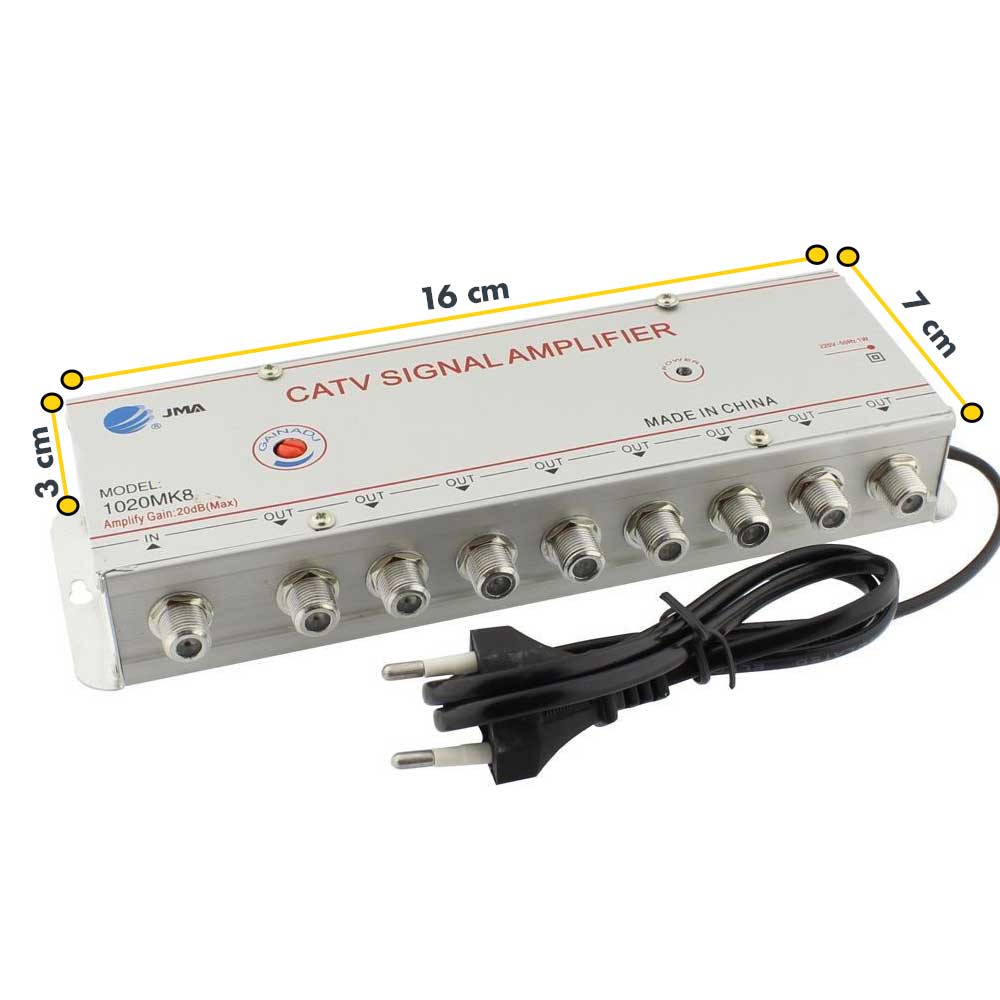

| Dimensions | 160 x 70 x 30 mm |
| Casing Material | Aluminum |
| Compatibility | Cable TV (CATV), Satellite |
| Package Contents | 1 x amplifier, 1 x power cable with EU plug |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with Romanian law. We accept returns within 30 days of receiving the order, with no obligation to provide a reason. Delivery is fast by courier within Romania.
