RGB LED Strip Amplifier, 12-24V/30A
Available in stock
| Quantity | Price per unit | You save |
|---|---|---|
| 1–2 pcs | 50,99 lei | — |
| 3–4 pcs | 48,44 lei | 5% (−2,55 lei/unit) |
| 5–10 pcs | 45,89 lei | 10% (−5,10 lei/unit) |
| 11+ pcs | 43,34 lei | 15% (−7,65 lei/unit) |

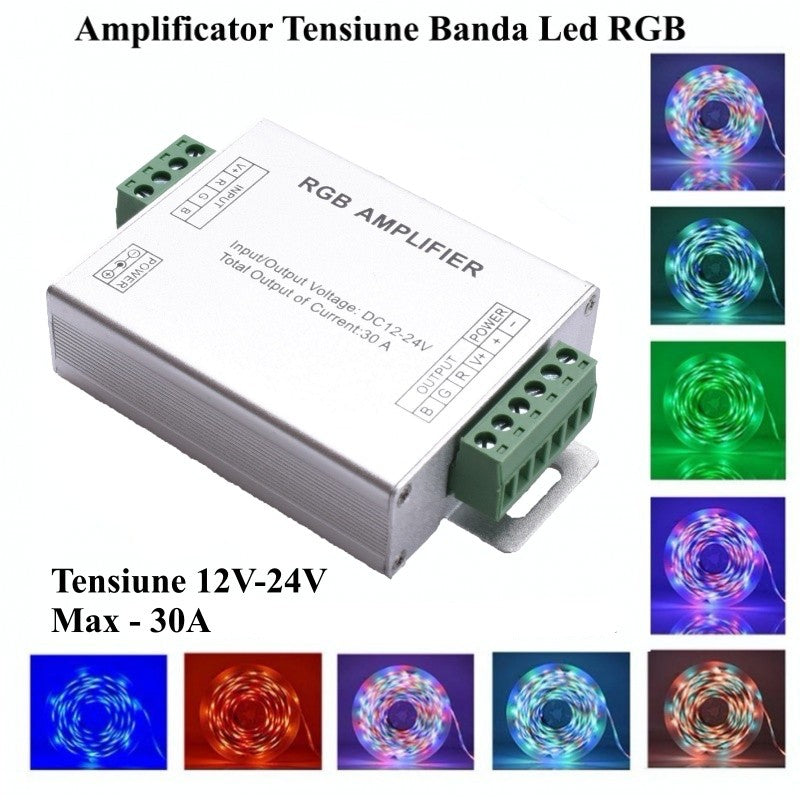

RGB LED Strip Amplifier for Extended Installations
The RGB LED strip amplifier allows you to extend your colored lighting installation without losing control over color and effects. Connected between the RGB controller and additional strips, it takes over the control signal and independently powers the subsequent segments, maintaining perfect color synchronization. This is the right solution when a single controller can no longer handle the total length of the installed strips.
What you get with this product
- Practically unlimited extension — you can connect multiple RGB LED strips simultaneously controlled by a single controller, without signal degradation
- Broad compatibility with 12V and 24V DC systems — works with most power supplies and RGB controllers on the market
- Maximum current of 30A — sufficient for long segments of LED strip without overheating or loss of brightness

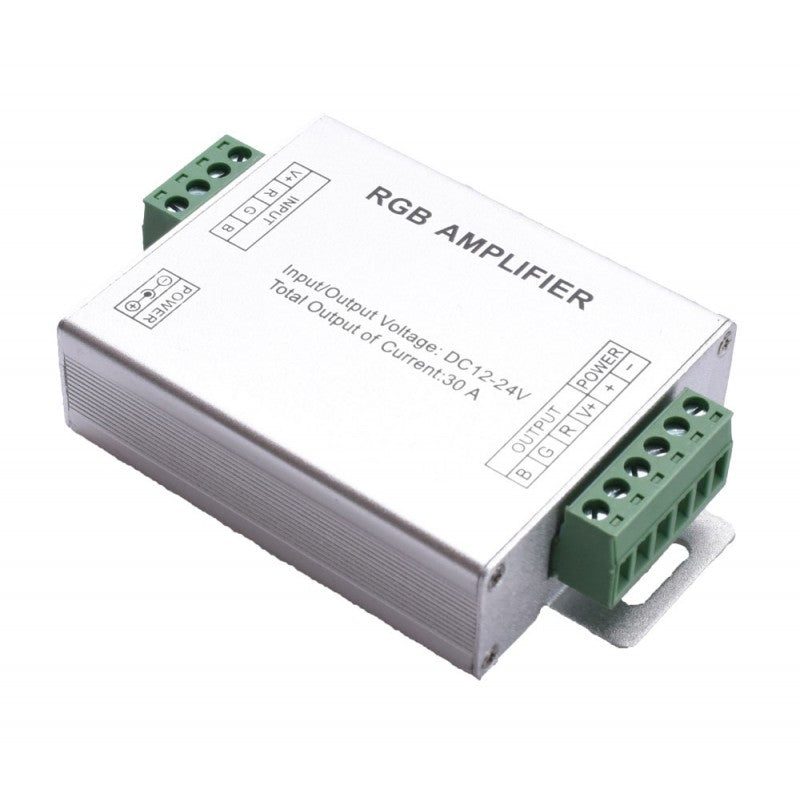

- Compact aluminum housing — mounts discreetly in narrow spaces, behind furniture, in profiles, or in small distribution boxes
- Screw terminal connectors — secure cable gripping that doesn't require soldering or special tools; connections remain stable over time
- Extended operating temperature — functions correctly between -20°C and +60°C, including in less ventilated or protected outdoor spaces
How it works and how to install it

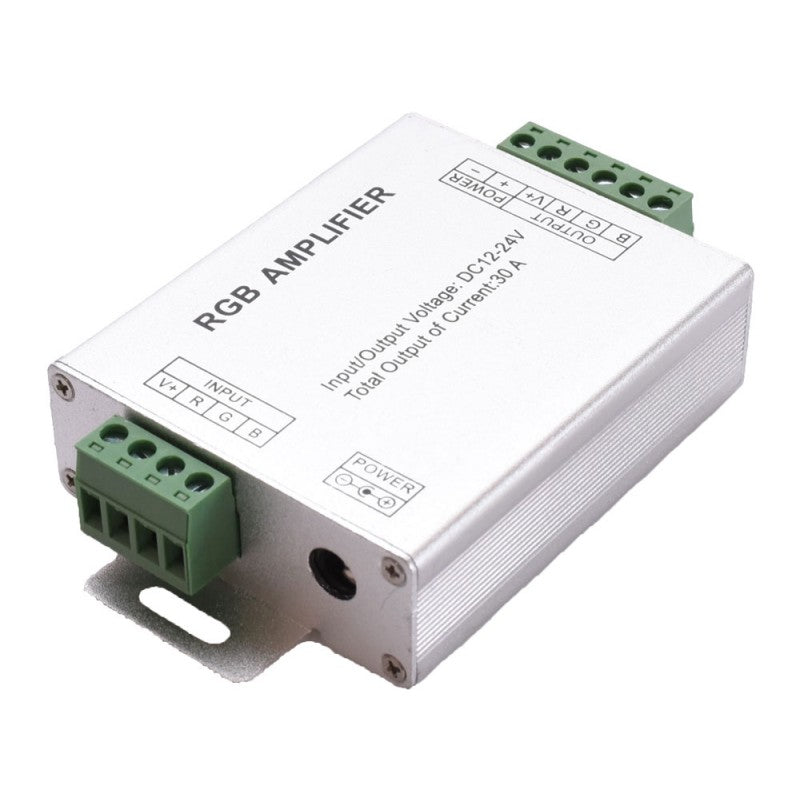

The RGB LED strip amplifier connects in series in the lighting circuit: the RGB signal from the existing controller enters through the INPUT terminals (V+, R, G, B), and a separate power supply connects to the 2.1mm female DC jack. The additional RGB LED strip(s) connect to the OUTPUT. Installation is done with a screwdriver, without advanced electrical knowledge — the terminals are clearly labeled on the housing.
Frequently Asked Questions
Do I need a separate controller for the strips connected to the amplifier?
No. The amplifier takes the control signal from the existing controller and retransmits it to the additional strips, so all segments remain synchronized and controlled from the same point.
What length of RGB LED strip can I connect to the amplifier's output?
It depends on your strip's consumption per meter. At a maximum current of 30A and a voltage of 12V, the amplifier theoretically supports up to 360W total power on the output — check the strip's label to calculate the maximum allowed length.
Is the amplifier compatible with 24V RGB LED strips?
Yes, the amplifier works with both 12V and 24V DC, so it is compatible with both standard types of RGB LED strips available on the market.
Technical Specifications
| Input/Output Voltage | DC 12V - 24V |
| Maximum Total Output Current | 30A |
| Compatible Strip Type | RGB LED Strip (3 channels: R, G, B) |
| Power Connection | 2.1mm Female DC Jack |

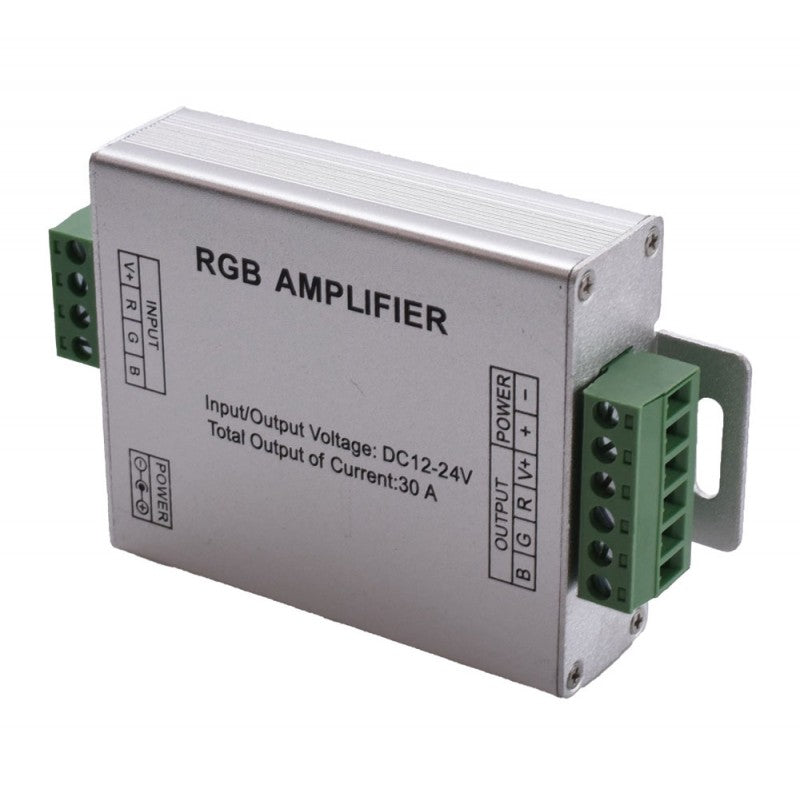

| Signal/Strip Connections | Screw Terminals (INPUT: V+, R, G, B / OUTPUT: B, G, R, V+) |
| Operating Temperature | -20°C / +60°C |
| Dimensions | 102 x 65 x 25 mm |
| Weight | 105 g |
| Housing Material | Aluminum |
| SKU | Q-18A093 |
| Package Contents | 1 x RGB LED Strip Amplifier 12-24V/30A |
Warranty and Support
The product benefits from a 2-year legal warranty in accordance with current Romanian legislation. We accept returns within 30 days of delivery, no justification required. Delivery is carried out quickly by courier, with shipping confirmation and parcel tracking.
